Component Overview Of Cylinder Head

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

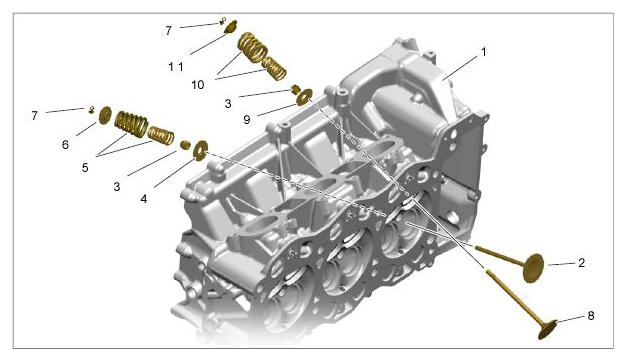

Fig 1: Overview Of Cylinder Head
G09821845Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cylinder head
  2. Intake valve
  3. Valve stem seal
  4. Lower valve-spring plate (intake)
  5. Valve spring set, conical (intake)
  6. Upper valve-spring plate (intake)
  7. Valve keys
  8. Outlet valve
  9. Lower valve-spring plate (outlet)
  10. Valve spring set, cylindrical (outlet)
  11. Upper valve-spring plate (outlet)

Information

Reusable inner parts of the cylinder head must always be cleaned thoroughly and assigned to their original installation location.

  1. Screw three valve locating screws -arrows-  into the spark plug threads.
    1. 1.1. Alternatively, rubber or plastic wedges can be used.

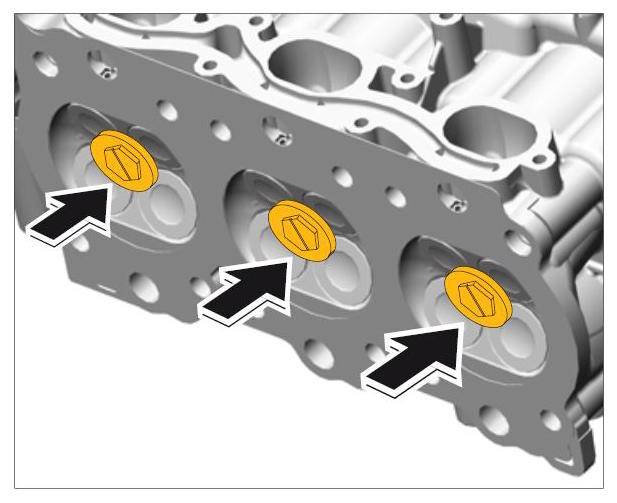

      Fig 2: Identifying Valve Locating Screws
      G09821846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Attach the screw clamps for fixing the cylinder head only on the unions, never on the sealing face.

  2. Fix cylinder head at the side -arrows-  to the workbench with screw clamps.
    1. 2.1. Clamp a piece of wood in between to protect the unions.

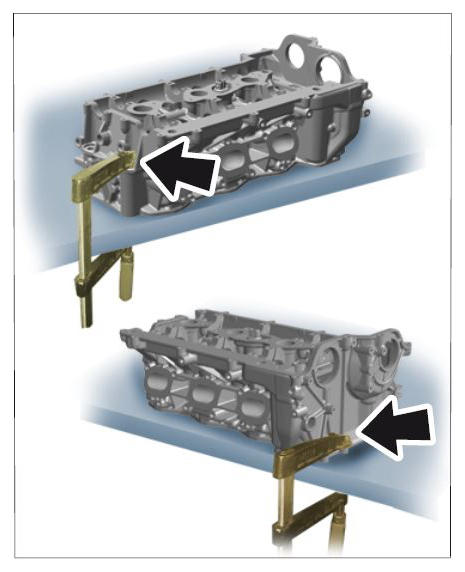

      Fig 3: Fixing Cylinder Head To Workbench
      G09821847Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Attach tools to the cylinder head.
    1. 3.1. Screw engaging lock -1-  into the appropriate threaded bore.
    2. 3.2. Insert guide bush -2-  and push it down as far as it will go.
    3. 3.3. Fit assembly cartridge -3-  into the guide bush.
    4. 3.4. Engage pressure fork with lever -4-  at a suitable position on the engaging lock and support it on the assembly cartridge.

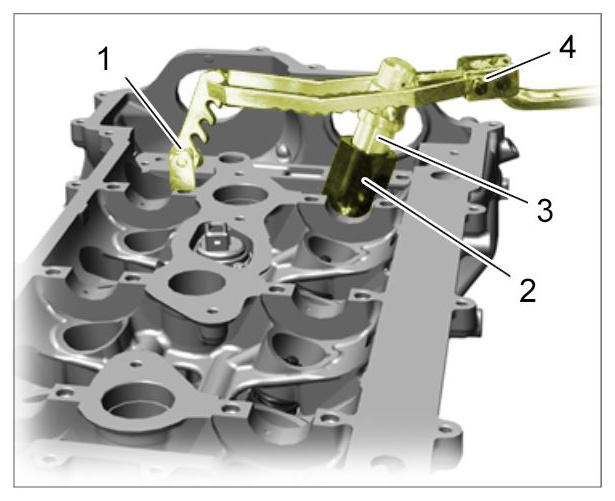

      Fig 4: Attaching Valve Key Fitting And Removal Tool Nr.54 Pos.1
      G09821848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The flexible rotating head of the assembly cartridge must be positioned almost on the assembly cartridge.
    • If this is not the case, the valve key mounting will not be positioned over the valve stem and it will not be possible to fit the valve keys.
  4. Remove the valve keys.
    1. 4.1. Press the valve springs together by pressing the pressure forks -arrow-  .
    2. 4.2. The valve keys are attached and secured by turning the flexible rotary head of the assembly cartridge -arrow-  .

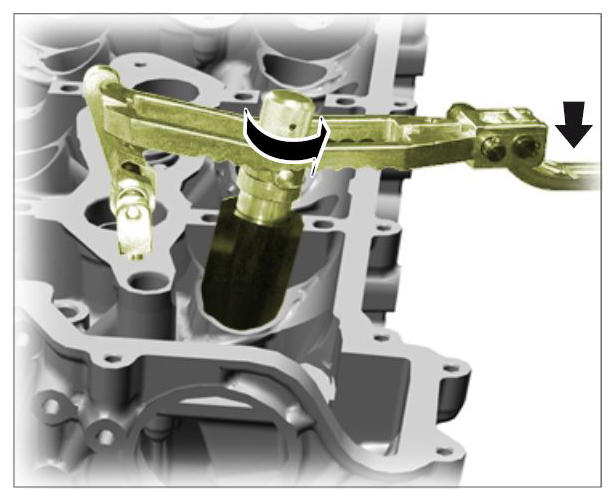

      Fig 5: Removing Valve Keys
      G09821849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Valve springs and valve-spring plates are different for intake and outlet valves.
    • The valve springs for the intake valves are conical, while the valve springs for the outlet valves are cylindrical. Check installation position!
  5. Remove valve springs and upper valve-spring plate using a bar magnet.
    1. 5.1. Do not confuse valve springs during installation!
      1. Valve spring set, conical (intake)
      2. Valve spring set, cylindrical (outlet)

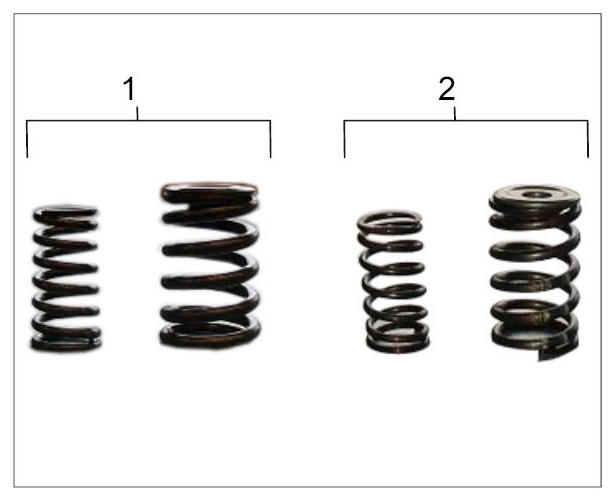

        Fig 6: Identifying Valve Springs - Intake/Outlet
        G09821850Courtesy of PORSCHE CARS NORTH AMERICA, INC.
