Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

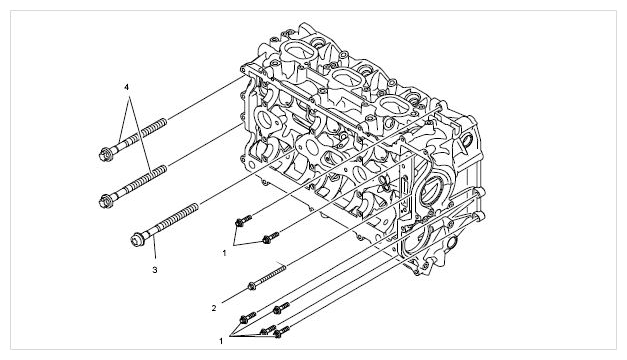

Fig 1: Identifying Cylinder Head Torx Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

External Torx screw, M6 x 25
External Torx screw, M6 x 80
Cylinder-head screw, internal Torx M12 x 1.5 x 140
Cylinder-head screw, external Torx M12 x 1.5 x 140

Make sure that the twelve displacement bodies -1- are in place on cylinder bank 1-3.

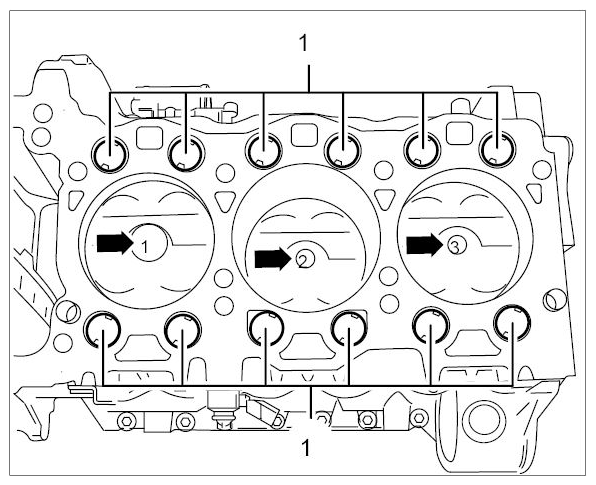

Fig 2: Locating Piston Markings And Displacement Bodies
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit a new cylinder-head gasket. Check that the dowel sleeves are installed correctly.
Carefully place cylinder head in position.
Information
- The tightening sequence must be strictly observed.

Fit two external Torx screws (M12 x 140) and six internal Torx screws (M12 x 140) and tighten according to tightening specifications.

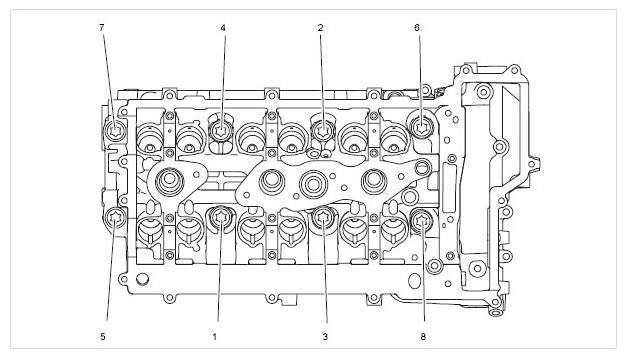

Fig 3: Tightening Sequence For Cylinder Head Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sequence	Designation	Thread	Tightening method	Value
1	Cylinder head screw, internal and external Torx	M12 x 1.5 x 140	Torque	5 Nm (3.5 ft. lb.)
2			Torque	50 Nm (37 ft. lb.)
3			Loosen all screws
4			Torque	5 Nm (3.5 ft. lb.)
5			Torque	12 Nm (9 ft. lb.)
6			Torque angle	60°
7			Torque angle	60°

Screw in four external Torx screws (E10) - three M6 x 25 screws -1- and one M6 x 80 screw -2- - on the inside of the cylinder head and tighten according to specifications.
→ Tightening torque: 13 Nm (9.5 ft. lb.)

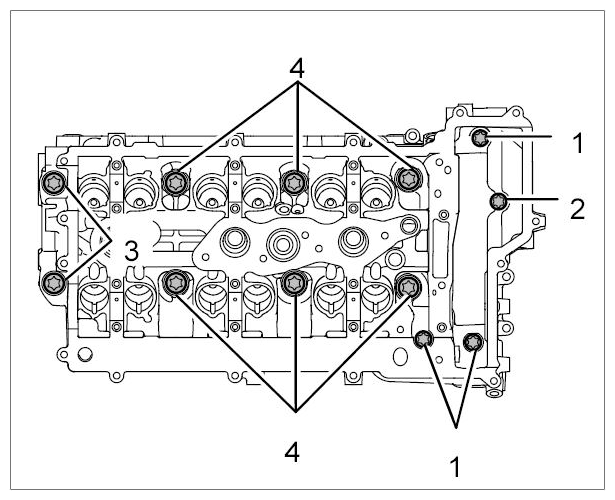

Fig 4: Overview Of Screws For Cylinder Head 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

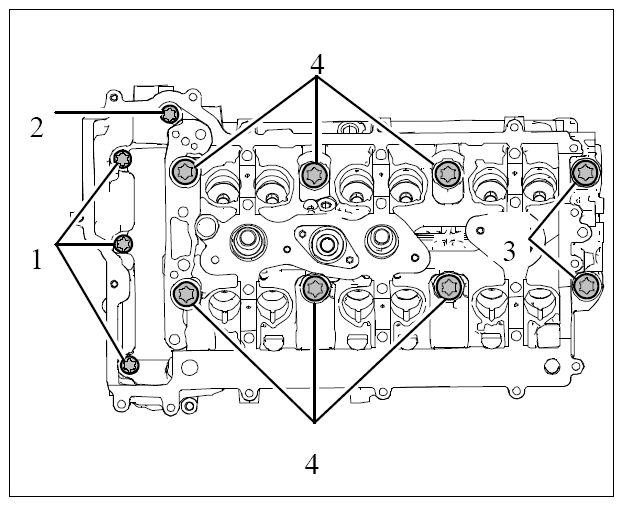

Fig 5: Overview Of Screws For Cylinder Head 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in external Torx screws (E10, M6 x 25) on the outside of the cylinder head and tighten according to specifications.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
Coat hydraulic tappets with new engine oil and guide into original installation position.
1. 7.1. Installation position of switching tappets -1- (intake side) and dowel pin -2- .

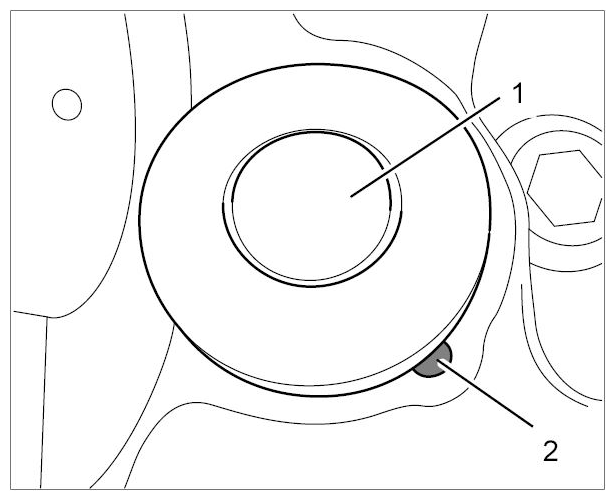

  Fig 6: Identifying Intake Switching Tappets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 7.2. Installation position of switching tappets -1- (outlet side) and dowel pins -2- .

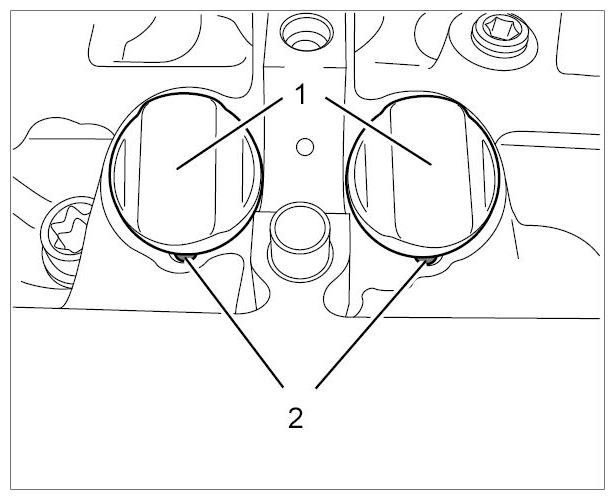

  Fig 7: Identifying Outlet Switching Tappets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
