Installing Cylinder Head
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Ingress of dirt
- Danger of material damage due to blocked oil bores/oil ducts.
→ Absolute cleanliness is essential when working on the engine.
→ Lay removed engine parts on a clean base and make sure to cover them.
→ Use the cover for dust protection when fitting the engine NR.165 on the engine assembly support.

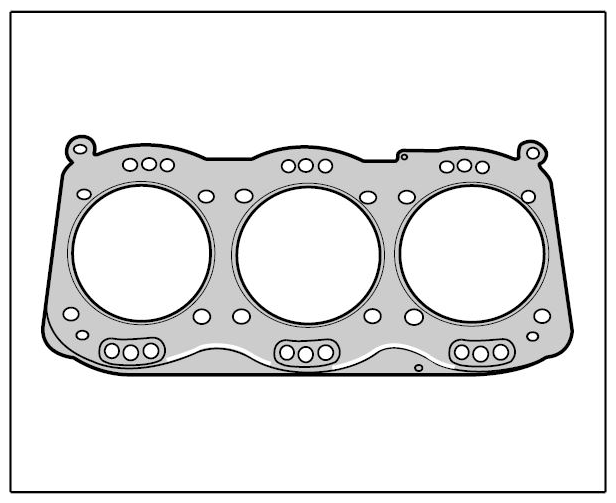

- Replace cylinder head gasket. The TOP marking must point to the observer.
- Coat threaded bolt lightly with fresh engine oil.
- Uniformly push the cylinder head over the studs from above. Make sure that the sealing face is not damaged.
- Oil the sealing surface of the multiple-tooth nuts lightly with fresh engine oil.
- 4.1. Screw on twelve M12 multiple-tooth nuts with washers by hand.

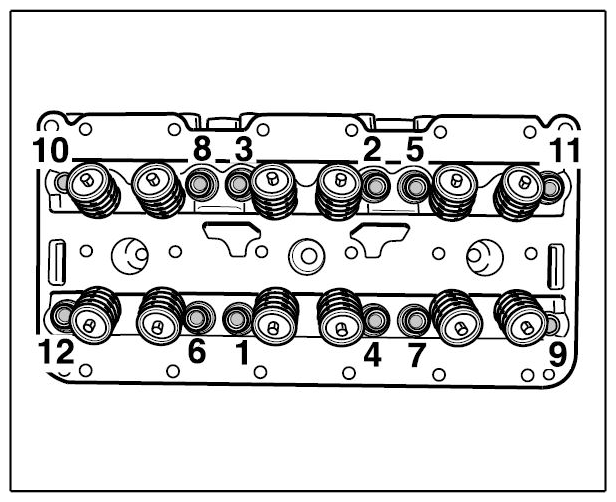

- Tighten multiple-tooth nuts on the cylinder head according to the specified tightening torque (see table below) and sequence → Tightening sequence for cylinder head nuts .
| Tightening sequence | Designation | Value | Unit |
|---|---|---|---|
| Step 1 | Initial tightening | 30 (22) | Nm (ft. lb.) |
| Step 2 | Loosen all screws in reverse tightening sequence | ||
| Step 3 | Screw in all screws evenly according to the prescribed tightening sequence | ||
| Step 4 | Joining torque | 20 (15) | Nm (ft. lb.) |
| Step 5 | Subsequent tightening | 20 (15) | Nm (ft. lb.) |
| Step 6 | Final tightening | 1 x 120° ± 2° | Degrees (torque angle) |
