Installing Solenoid Hydraulic Valve For Valve Lift Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The solenoid hydraulic valve for valve lift adjustment can be fitted on either cylinder bank.

Installation Position:

Installation position of valve for cylinder bank 1-3
Installation position of valve for cylinder bank 4-6

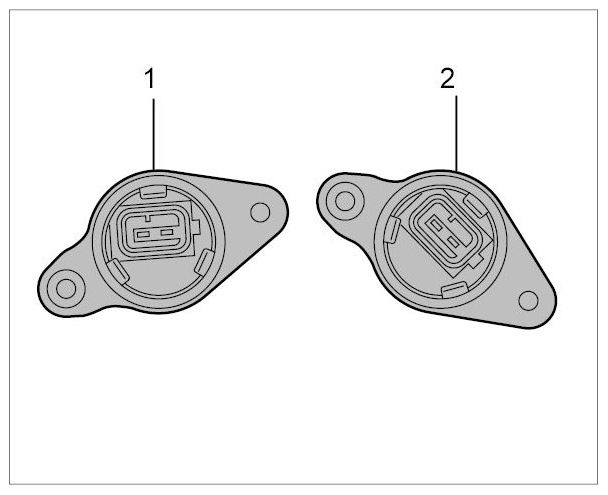

Fig 1: Installation Position Of Solenoid Hydraulic Valves In Cylinder Head
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Replace O-rings.
Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

Replace O-ring -2- and grease with Kluber Syntheso Glep (Part No. 000.043.204.68).

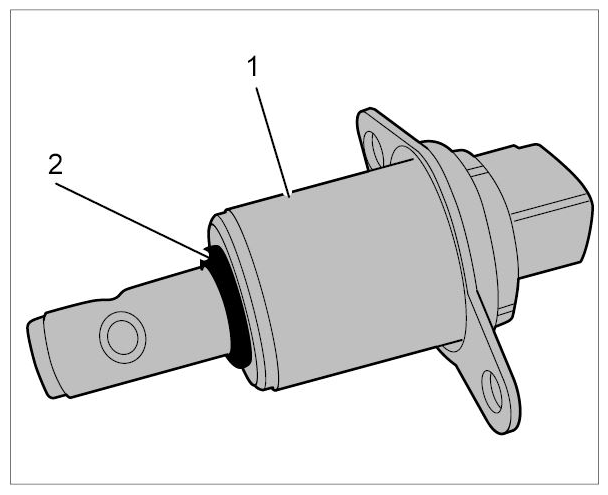

Fig 2: Identifying Solenoid Hydraulic Valve And O-Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit solenoid hydraulic valve with new O-ring at the correct position in the cylinder head.
Fit two external Torx screws (E8, M5 x 12) and tighten to the prescribed tightening torque.
→ Tightening torque: 8 Nm (6 ft. lb.)
1. 3.1. Connect cable plug.

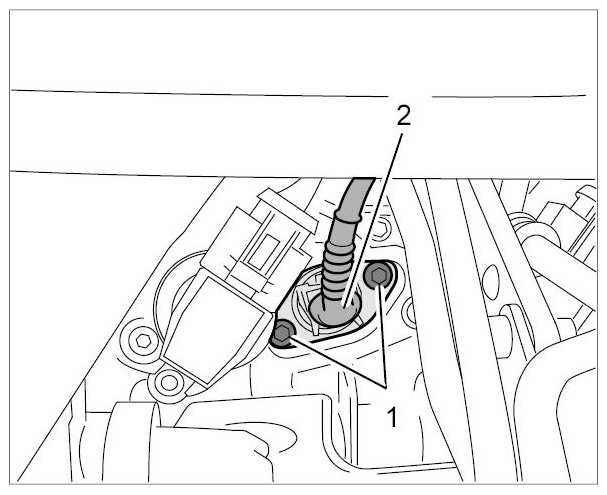

  Fig 3: Identifying Solenoid Hydraulic Valve Screws And Cable Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
