Removing Solenoid Hydraulic Valve (Outlet)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Place a container under the assembly point to collect engine oil.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.
Remove solenoid hydraulic valve.
1. 2.1. Disconnect the cable plug by pressing the spring clamps and pulling off the connector.
2. 2.2. Unscrew two external Torx screws (E8, M5 x 12).
3. 2.3. Engine oil will come out when you pull out the valve.
  Pull the valve out carefully.
4. 2.4. Collect emerging engine oil.

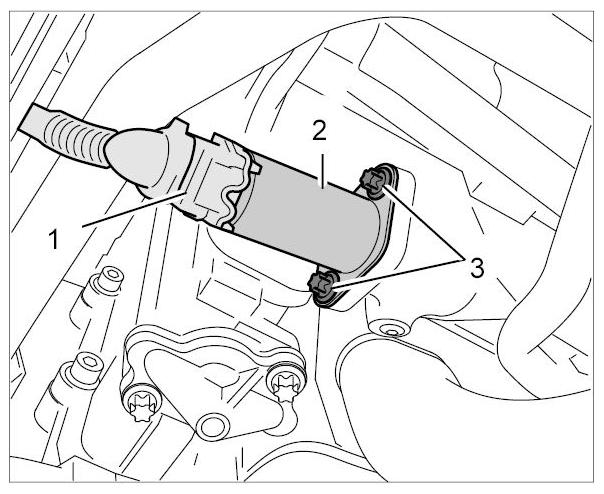

  Fig 1: Identifying Solenoid Hydraulic Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace O-ring on the valve.
