Installing Solenoid Hydraulic Valve (Outlet)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing surfaces.
Information
- Replace O-rings.
- Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).
Install solenoid hydraulic valve -2- with a new O-ring.
1. 2.1. Insert valve and secure with two external Torx screws (E8, M5 x 12) -3- .
  → Tightening torque: 8 Nm (6 ft. lb.)
2. 2.2. Fit cable plug.
3. 2.3. Remove oil residue at the assembly point.

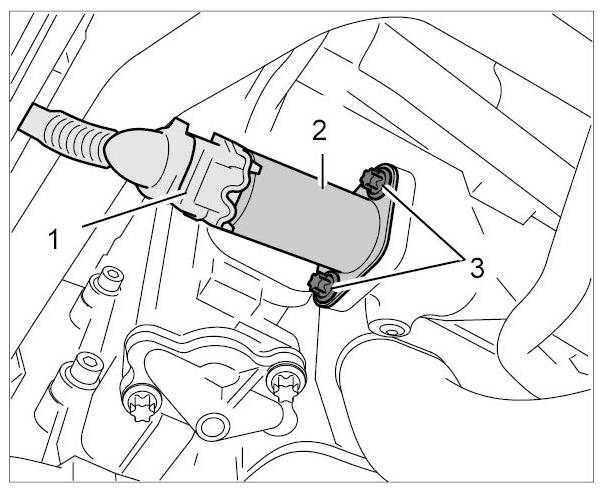

  Fig 1: Installing Solenoid Hydraulic Valve On Outlet Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill in engine oil.
→ 170155 CHANGING ENGINE OIL AND OIL FILTER .
Check engine-oil level.
→ 170101 CHECKING ENGINE-OIL LEVEL .
1. 4.1. Inspect valve for leaks.
