Installing Hydraulic Valve For Camshaft Control

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace O-ring on the hydraulic valve.
Check installation position.

Install solenoid hydraulic valve.
1. 1.1. Coat O-ring on the hydraulic valve with new engine oil.
2. 1.2. Insert hydraulic valve into the cylinder head. Check the installation position while doing this.
3. 1.3. The ball pin on the valve -arrow- must be seated in the socket in the cylinder head.

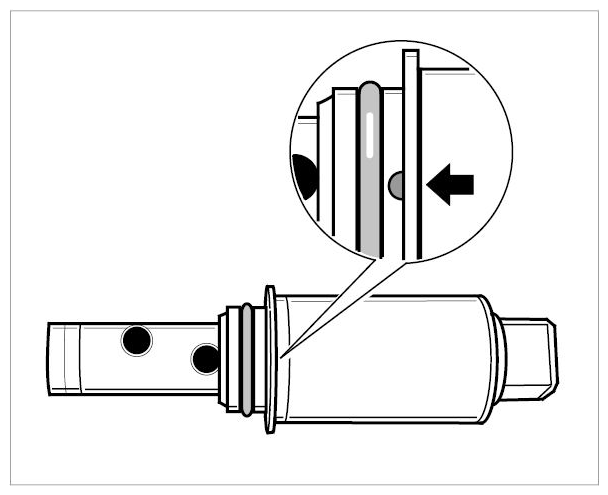

  Fig 1: Locating Ball Pin In Plate For Solenoid Hydraulic Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the retainer plate and fit and tighten two external Torx screws (E10, M6 x 20).
→ Tightening torque: 10 Nm (7.5 ft. lb.)
