Installing Solenoid Hydraulic Valve For Camshaft Control

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Uncover the bore hole.
Information

Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
Install solenoid hydraulic valve with a new O-ring.
1. 2.1. Insert the solenoid hydraulic valve -1- and check the installation position of the cable plug -arrow- .

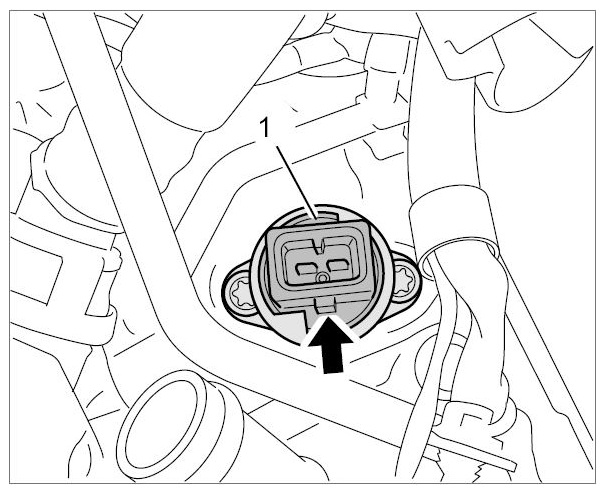

  Fig 1: Locating Installation Position Of Solenoid Hydraulic Valve (Cylinder Bank 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten two external Torx screws (E8, M5 x 12) -2- .
→ Tightening torque: 8 Nm (6 ft. lb.)

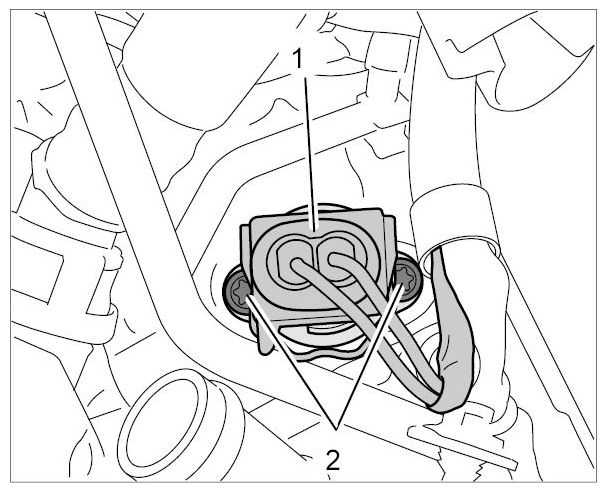

Fig 2: Identifying Screws And Cable Plug For Solenoid Hydraulic Valve (Cylinder Bank 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on cable plug.
