Installing Solenoid Hydraulic Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Information

The metal strainers on the control ducts can spring off when pulling out the valve.
The reason for this is that the spotwelds may have become loose due to vibrations.
Check during re-installation that the strainers are still in place. If the strainers are missing, the valve will have to be replaced.

Fit valve with new O-ring.
1. 1.1. Insert valve -1- and check installation position and correct cable plug position -arrow- .

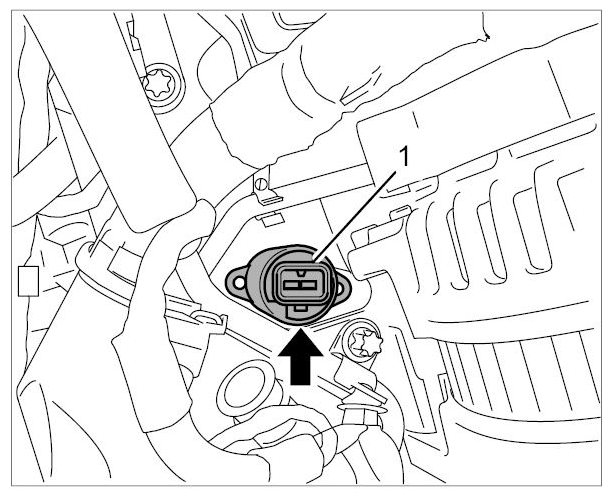

  Fig 1: Identifying Installation Position Of Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fit and tighten two external Torx screws (E8, M5 x 12) -2- .
  → Tightening torque: 8 Nm (6 ft. lb.)
3. 1.3. Connect cable plug -1- .

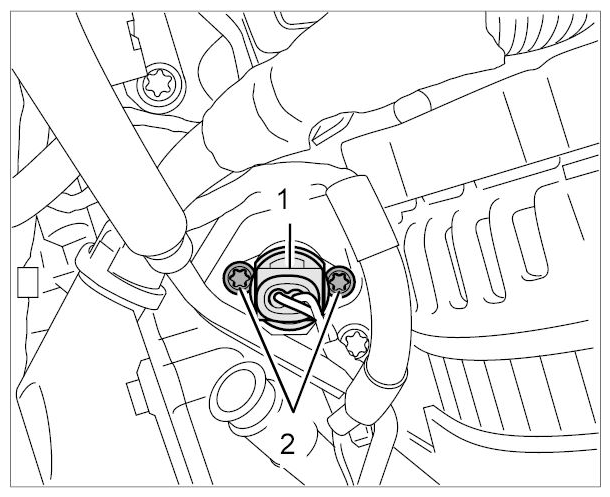

  Fig 2: Identifying Screws And Cable Plug For Hydraulic Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
