WM 152119 Removing And Installing Bearing Cover For Intermediate Shaft - M96/05 (CARR. Coupe, CARR. CABRIO, CARR. 4 Coupe, TARGA 4 & CARR. 4 CABRIO): Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Designation |
Type |
Number |
Description |
|

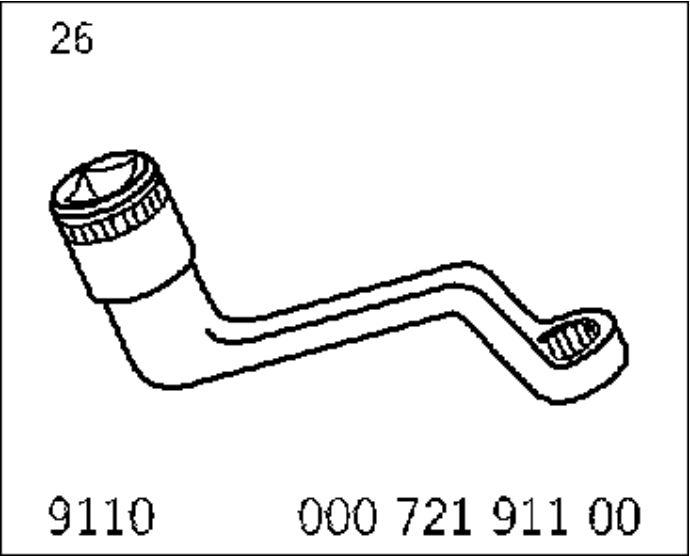

| socket wrench |
Special tool |
9110 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| |

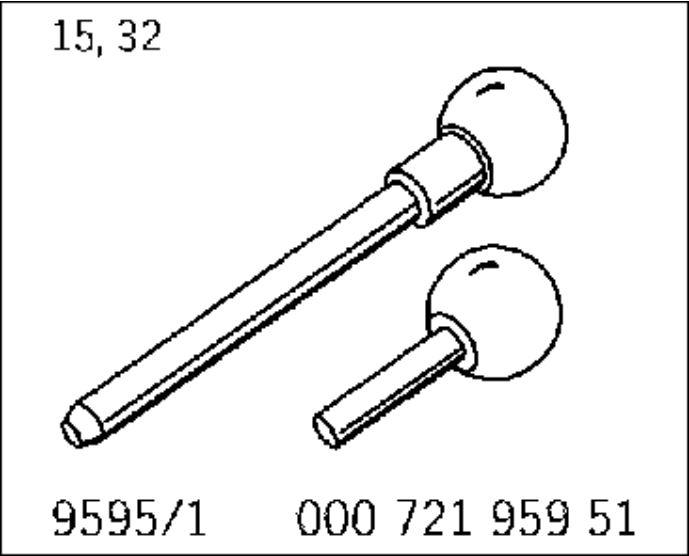

locating pins |
Special tool |
9595/1 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| |

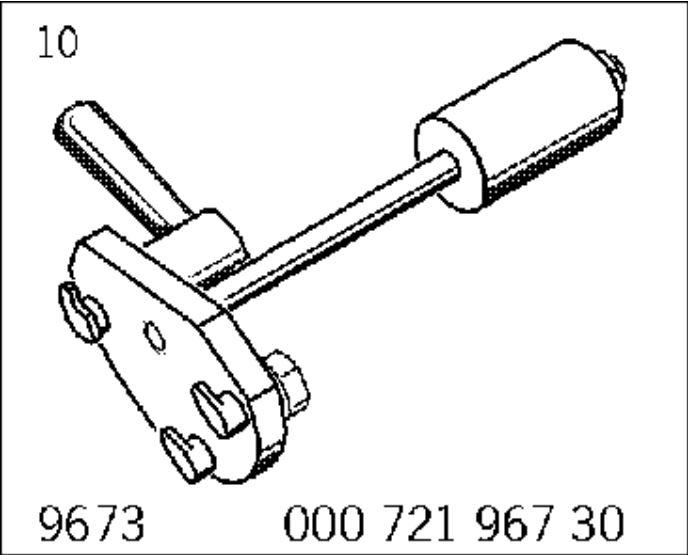

puller |
Special tool |
9673 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| |

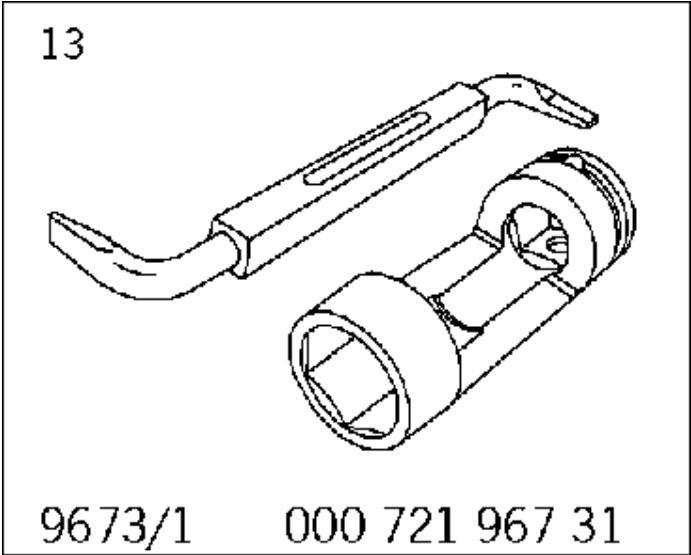

assembly tool |
Special tool |
9673/1 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| |

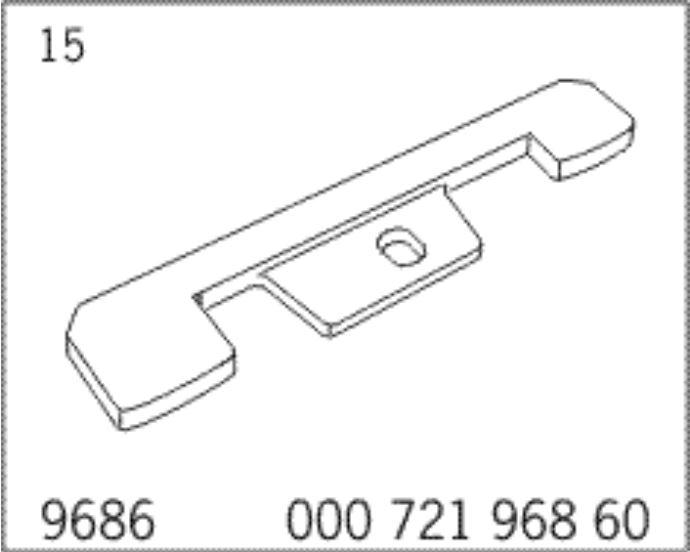

adjusting gauge |
Special tool |
9686 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| |

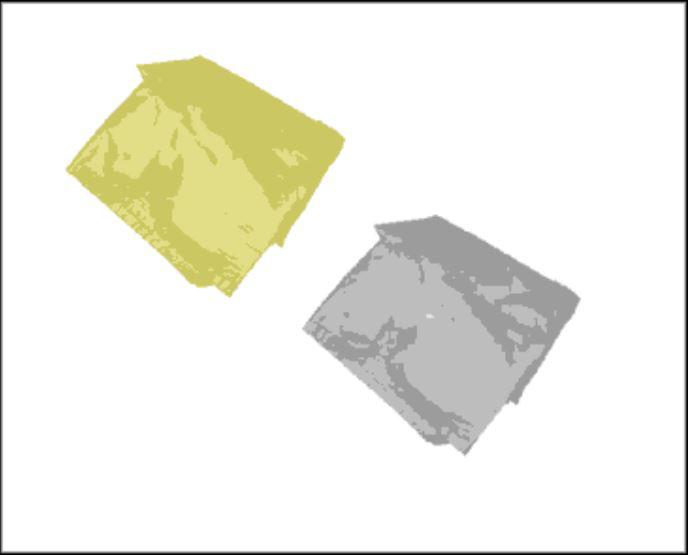

cover for dust protection when fitting the engine |
Special tool |
NR 165 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
