Installing Intake Camshaft For Oil Guide Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Information

The oil guide housing of cylinder rows 1-3 and 4-6 differ in height → Oil guide housing.

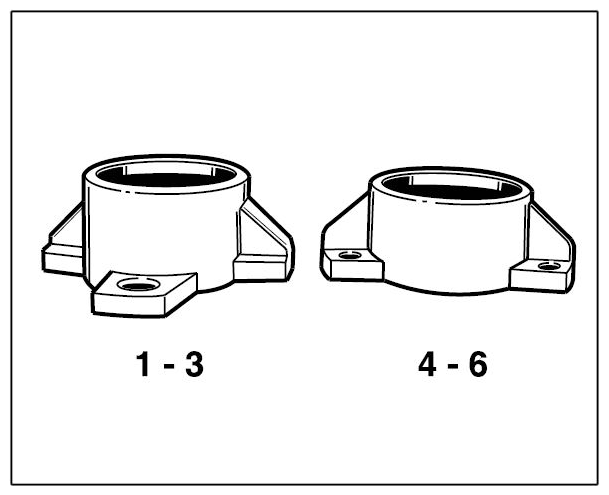

Fig 1: Identifying Oil Guide Housings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly is only required if the oil guide housing was removed from the camshaft.

Fit oil guide housing on the camshaft.
1. 1.1. Check the metal plain compression rings for visible and obvious signs of wear and replace them if necessary.
2. 1.2. Lightly oil the inside of the oil guide housing.
3. 1.3. Push the oil guide housing over the three metal plain compression rings on the camshaft. Press the sealing rings together by hand.

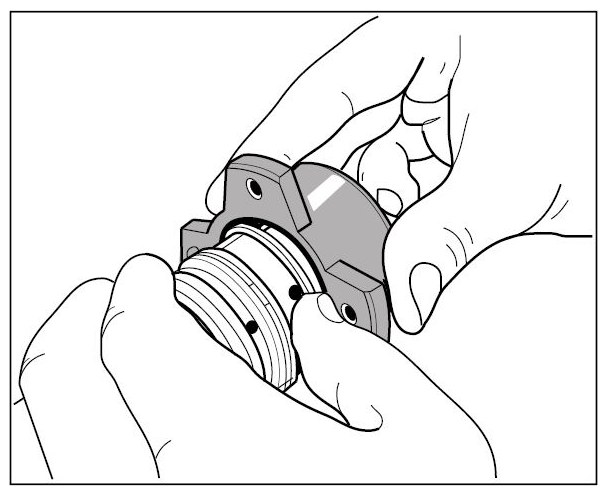

  Fig 2: Pushing Oil Guide Housing Assembly
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

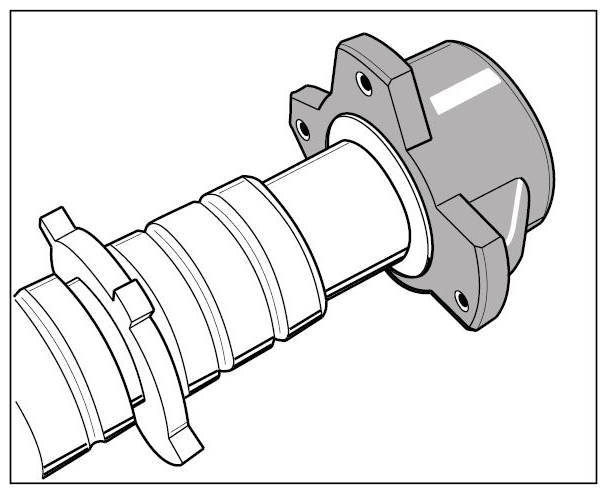

  Fig 3: Identifying Prefitted Oil Guide Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
