Component Overview Of Camshafts With Housing And Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

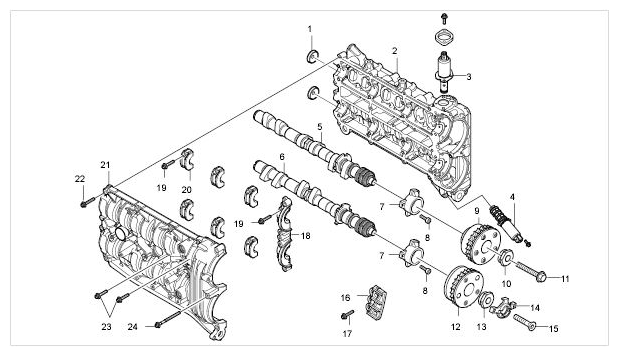

Fig 1: Overview Of Camshaft Housing (Cylinder Bank 1-3)
G09821689Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cover - always replace
  2. Camshaft housing
  3. Solenoid hydraulic valve for intake camshaft control
  4. Solenoid hydraulic valve for outlet camshaft control
  5. Intake camshaft
  6. Outlet camshaft
  7. Oil guide housing
  8. Cheese head bolt M5 x 10 (hexagon socket a/f 4)
  9. Intake camshaft actuator
  10. Hexagon driver, a/f 30
  11. Central screw M12 x 130, hexagon a/f 16
  12. Outlet camshaft actuator
  13. Hexagon driver, a/f 24
  14. Cylinder bank 1-3 only:  Driver for vacuum pump
  15. Central screw M12 x 130 (internal Torx T60)
  16. Guide rail
  17. External Torx screw (E10, M6 x 25)
  18. Thrust bearing
  19. External Torx screw (E10), M6 x 30
  20. Housing
  21. Camshaft-housing cover
  22. External Torx screw (E10), M6 x 35
  23. External Torx screw (E10), M6 x 20
  24. External Torx screw (E10), M6 x 70
