Installing Oil Guide Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The oil guide housing of cylinder rows 1-3 and 4-6 differ in height → Oil guide housing.

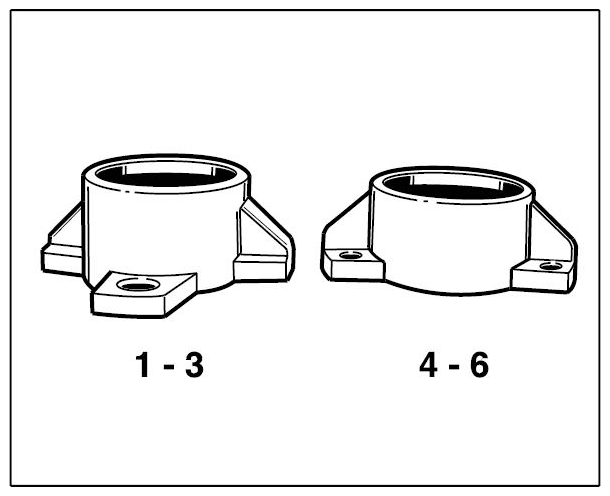

Fig 1: Identifying Oil Guide Housings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly is only required if the oil guide housing was removed from the camshaft.

Fit oil guide housing on the relevant intake camshaft.
1. 1.1. Check the metal rectangular rings for wear. If you find signs of wear, replace them.
2. 1.2. Oil the oil guide housing slightly.
3. 1.3. Push the oil guide housing over the three metal rectangular rings on the intake camshaft. To do this, press the sealing rings together with your hand.

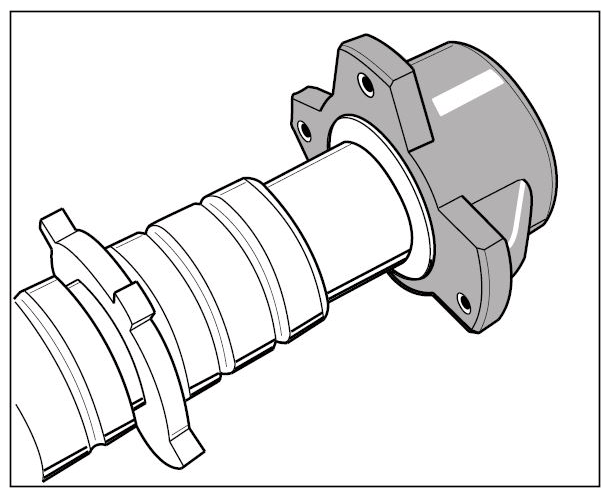

  Fig 2: Fitting Oil Guide Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

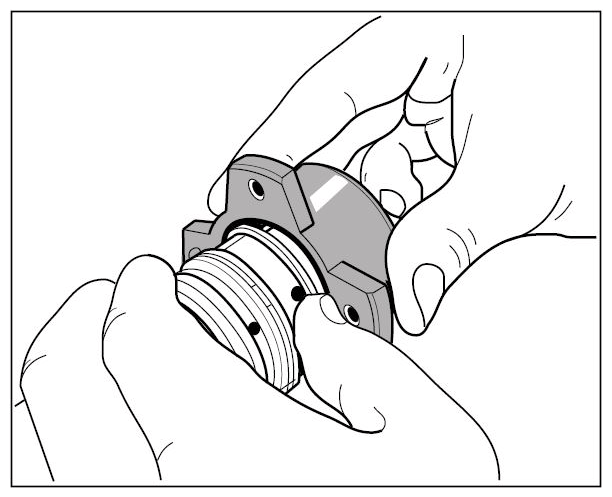

  Fig 3: Identifying Fitted Oil Guide Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
