Camshaft Housing Components

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

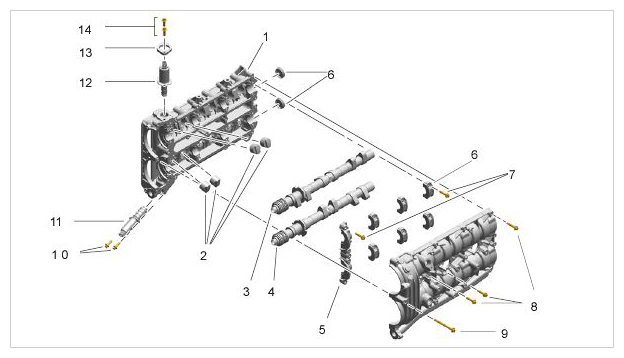

Fig 1: Overview Of Camshaft Housing
G09821540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Camshaft housing
  2. Bucket tappets
  3. Inlet camshaft
  4. Outlet camshaft
  5. Bearing saddle
  6. Bearing cover
  7. External Torx screw, M6 x 30
  8. External Torx screw, M6 x 35
  9. External Torx screw, M6 x 70
  10. External Torx screw, M5 x 12
  11. Hydraulic valve for outlet camshaft control
  12. Hydraulic valve for inlet camshaft control
  13. Hydraulic valve holder
  14. External Torx screw, M6 x 20
