Removing and installing the wiper motor: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the covers above the battery and fluid tank. Disconnect the battery and cover the terminal or battery.
  2. Undo the fastening nut of the link. When doing so, hold in position using an open-end spanner (width across flats 21 mm). Remove the link.
  3. Undo the fastening screws on the wiper motor (3 screws M6) and the lower fastening screw on the body. Carefully raise the wiper link and remove the wiper motor downwards.

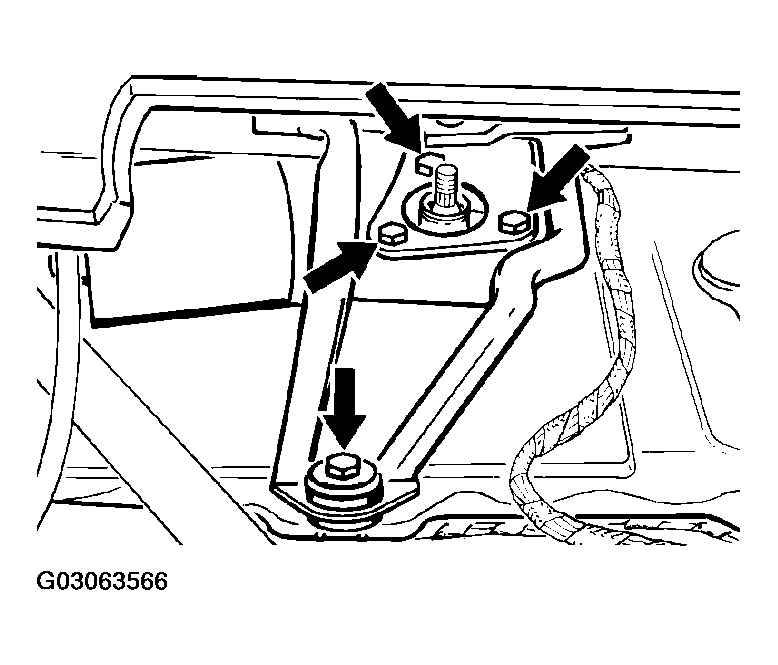

    Fig 1: Removing Wiper Motor & Screws
    G03063566Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Disconnect the electrical plug connection on the wiper motor.
