Removing and installing the wiper motor: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Wiper motor in parking position. Fit the link. The installing position is identified by a 0 marking (parking position) on the console.

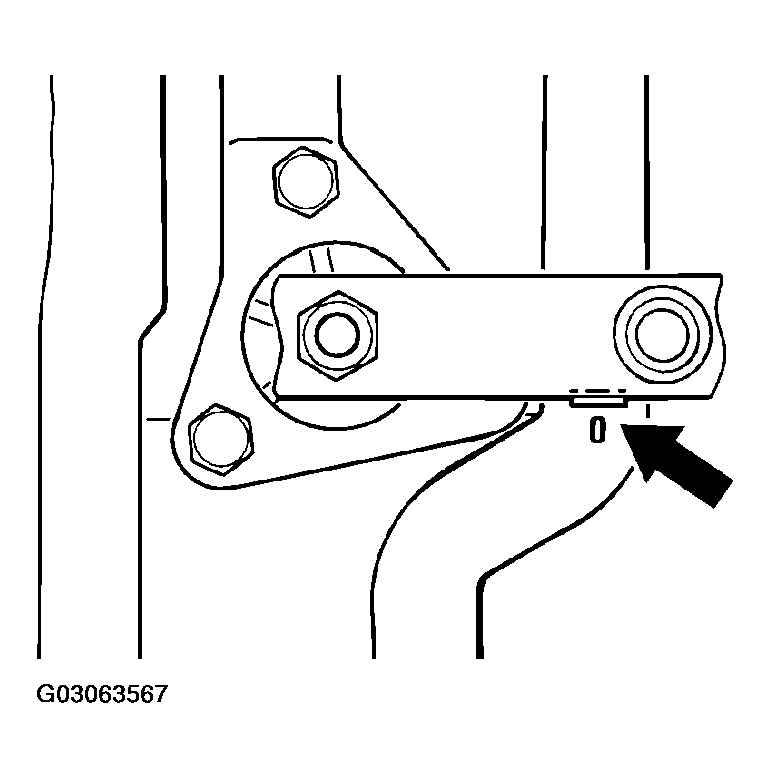

Fig 1: Identifying Wiper Motor Parking Position (0 Marking)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Connect the battery.
Switch on the wiper motor and check the wiper position.

TORQUE SPECIFICATIONS - WIPER MOTOR

Component	Thread	Tightening torque:
Fastening screw, motor	M6	8 Nm (6 ftlb.)
Fastening nut, link	M8	17 Nm (12.5 ftlb.)
Hexagon-head bolt	M6	10 Nm (7.5 ftlb).
