Removing and installing the wiper link: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Observe the installation sequence for the fastening screws 1...3.

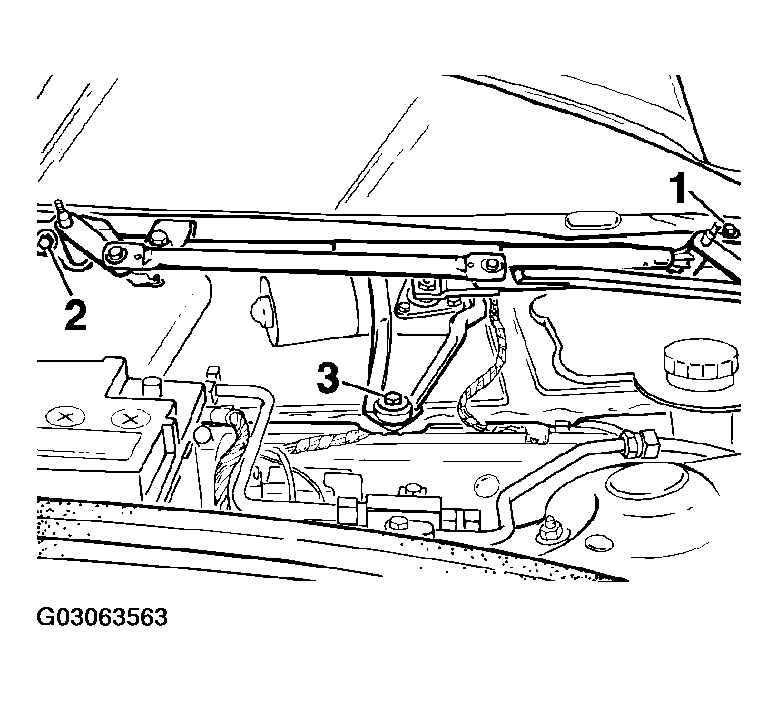

Fig 1: Installing Wiper Link & Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tightening torque:
Wiper arm nut M8 - 17 Nm (12.5 ftlb.)

Hexagon-head bolts M6 - 10 Nm (7.5 ftlbf.)
Before installing the dome strut, the vehicle must be on its wheels.
