Removing and installing the wiper blades

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The wiper blades for the driver's and passenger's side are different. The wiper blade on the driver's side is straight. On the passenger's side it is curved (see Fig 1 ). This arrangement applies to left-hand drive and right-hand drive vehicles.

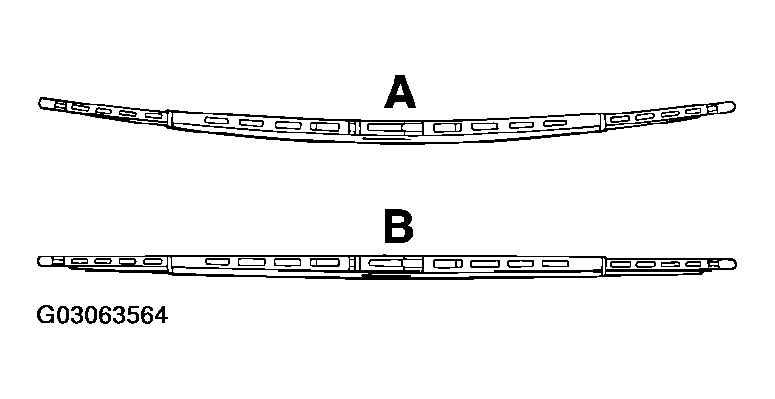

Fig 1: Identifying Wiper Blades
G03063564Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Passenger's side
  2. Driver's side
NOTE: The spoiler edge on the wiper blade on the driver's side must face downwards.

The clip installation position must be observed when installing the wiper blades for left-hand driver and right-hand driver vehicles.

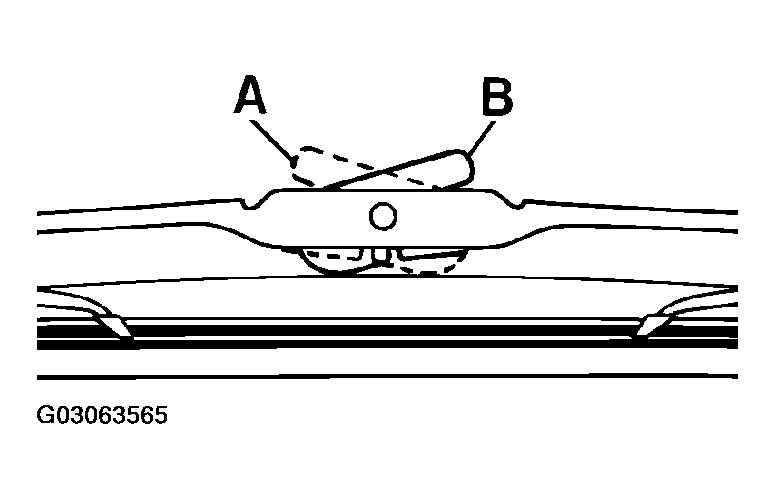

Fig 2: Identifying Clip Installation Position For Installing Wiper Blades
G03063565Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Clip for left-hand drive vehicles
  2. Clip for right-hand drive vehicles
