3 L tank

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. The 3 L tank is not equipped with a headlight cleaning system.
  2. The tank is fastened only by one M8 x 35 hexagon-head bolt (tightening torque 20 Nm (15.0 ftlb.)).

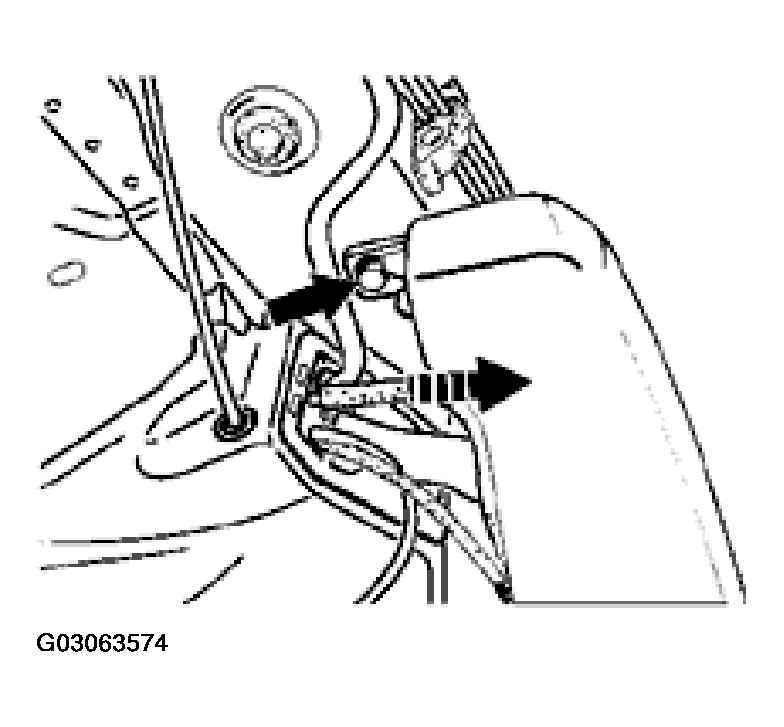

    Fig 1: Removing Windscreen Washer System Tank 3 L
    G03063574Courtesy of PORSCHE OF NORTH AMERICA, INC.
