Removing and installing spray nozzle for headlight washing system: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove main headlights (refer to REMOVING AND INSTALLING MAIN HEADLIGHTS ).
  2. Remove spray nozzle for headlight cleaning system on the left side.
  3. Undo M6 hexagon nut from the spray nozzle holder.
  4. Separate plug-in coupling and take out the spray nozzle.

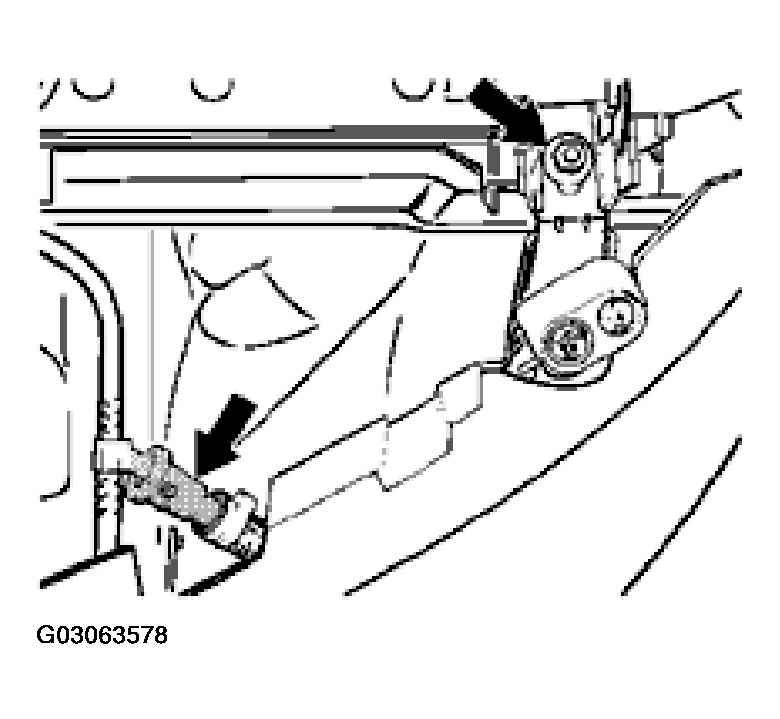

    Fig 1: Loosening Hose Clamp And Pulling Hose Off The Spray Nozzle For Headlight Washing System
    G03063578Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Loosen hose clamp and pull hose off the spray nozzle.
    NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
  6. Remove spray nozzle for headlight cleaning system on the right side.
  7. Undo M6 hexagon nut from the spray nozzle holder and lift the spray nozzle out.

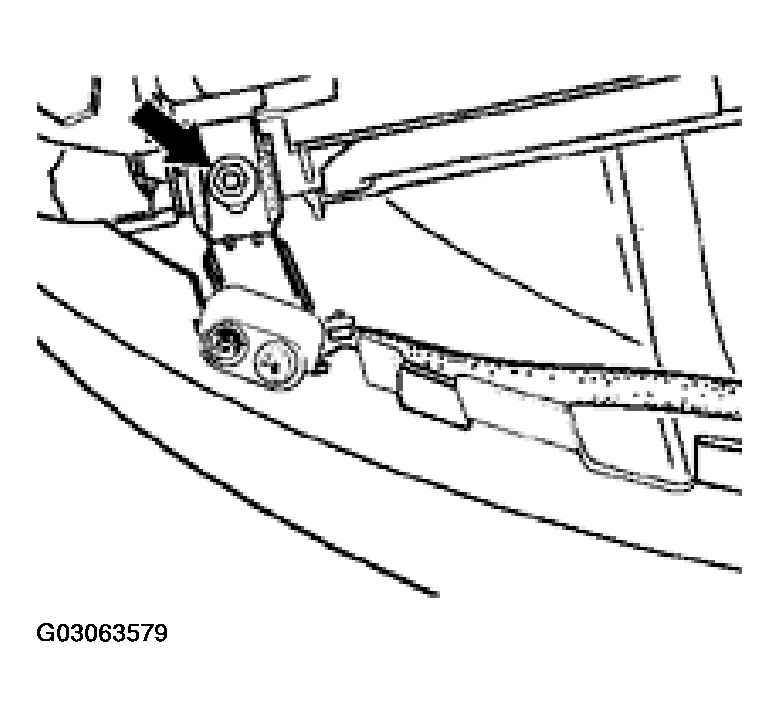

    Fig 2: Removing Headlight Spray Nozzle & Hexagon Nut
    G03063579Courtesy of PORSCHE OF NORTH AMERICA, INC.
  8. Loosen hose clamp and pull hose off the spray nozzle.
