Removing rear windscreen wiper motor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Open rear lid.
  • Remove ignition key.

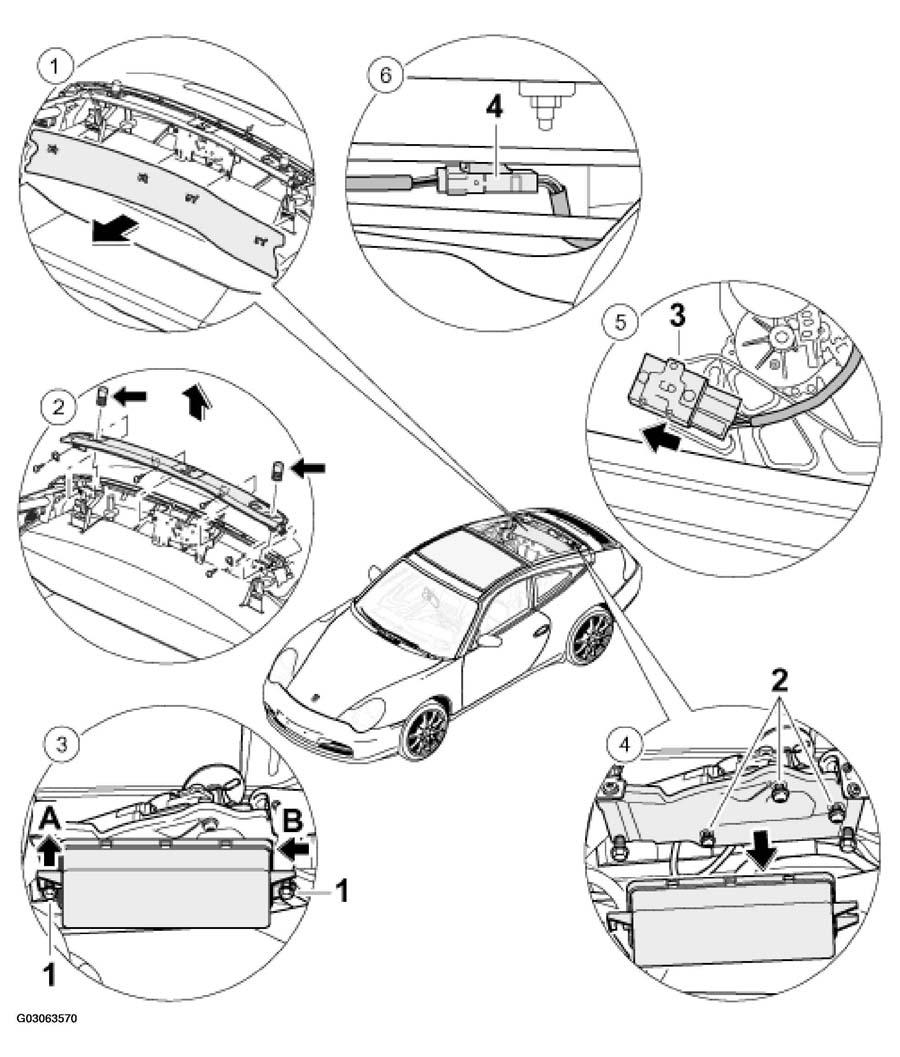

Fig 1: Removing Rear Windscreen Wiper Motor Components (Sliding Roof) - Targa
G03063570Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVAL PROCEDURE OF REAR WINDSCREEN WIPER MOTOR

No. Procedure Instructions
1 Removing rear wall lining Hold rear cover at the side underneath and carefully pull out of the clips in the -direction of arrow-  . See Fig 1 .
2 Removing top cover Mark rubber stops -arrow-direction of arrow-  . See Fig 1 .
3 Removing sliding roof control unit Unscrew both fastening screws -1-A-B-  . See Fig 1 .
4 Removing wiper motor Unscrew three fastening screws -2-  . See Fig 1 .
5 Removing relay for wiper motor Relay -3-direction of arrow-  . See Fig 1 .
6 Plug connection for wiper motor The plug -4-  . See Fig 1 .
