Installing rear windscreen wiper motor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Rear lid opened.
  • Ignition key removed

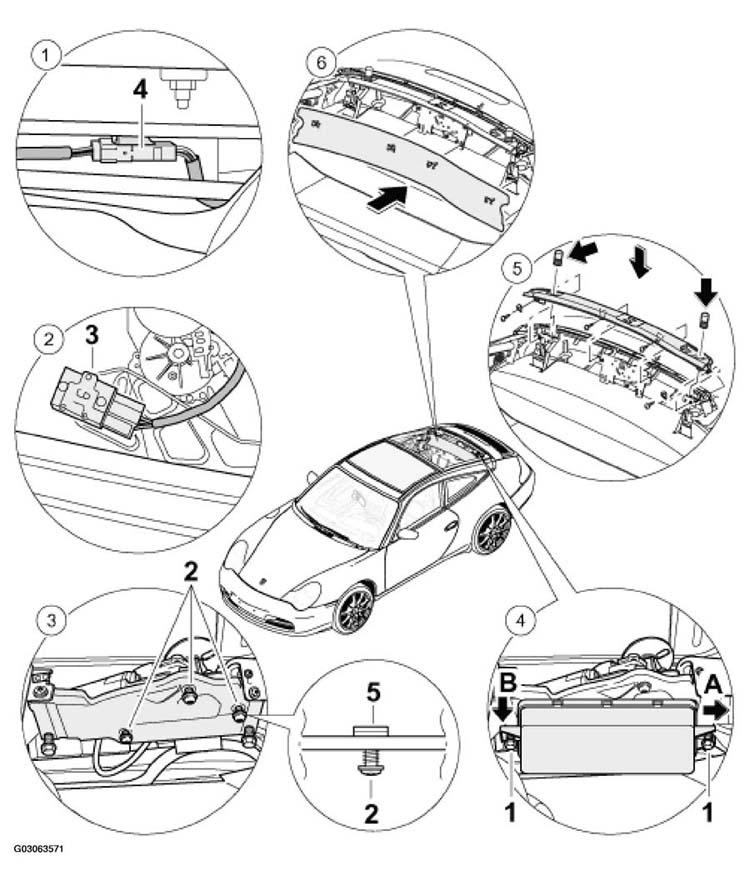

Fig 1: Installing Rear Windscreen Wiper Motor Components (Sliding Roof) - Targa
G03063571Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR WINDSCREEN WIPER MOTOR INSTALLATION PROCEDURE

No. Procedure Instructions
1 Connecting plug connection of wiper motor Route wiper motor line back to the plug -4-  . See Fig 1 .
2 Installing relay Insert the relay -3-  . See Fig 1 .
3 Fasten wiper motor Fix the respective number of washers, e.g. with grease, put on the wiper motor and position with the fastening screws -2-2-  . See Fig 1 .
4 Installing control module Push the control unit first in direction -A-B-1-  . See Fig 1 .
5 Installing upper wiper motor cover Put on cover in -direction of arrow-  . See Fig 1 .
6 Installing rear wall lining. Position cover and push on in direction of arrow until the pegs of the cover clip in.
