Removing and installing rear window wiper system: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cover over rear-window wiper arm. Undo the hexagon nut and pull off the rear window wiper arm. The rubber seal remains in the rear centre panel; do not remove.
  2. Remove the rear panel cover in front of the rear-window wiper motor. Undo the retaining frame with rear-window wiper motor at the rear centre panel (2 nuts, 1 screw) and pull out to the front. Disconnect the electrical plug connection.

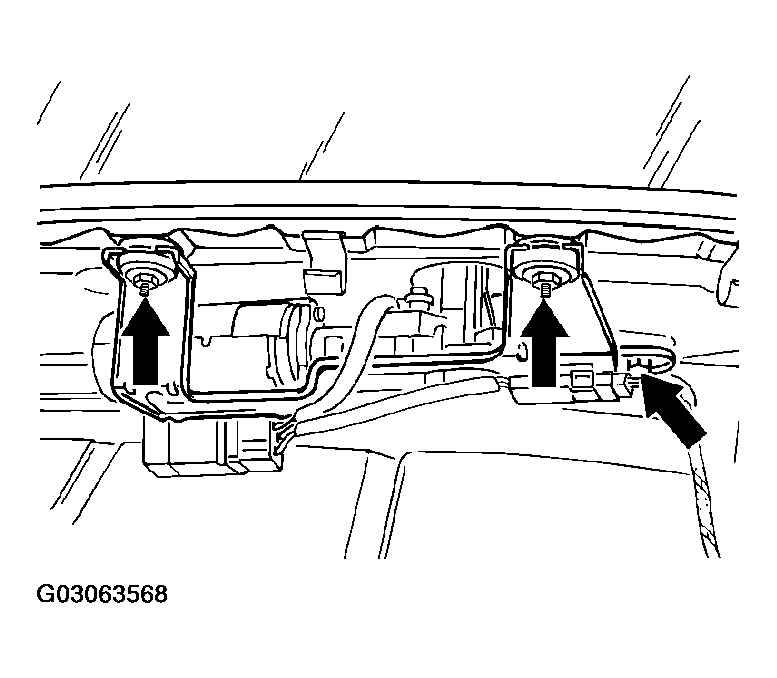

    Fig 1: Removing Rear Window Wiper System
    G03063568Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The relay can be unclipped and removed with the wiper motor installed.
