Removing rain sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
RAIN SENSOR REMOVAL PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

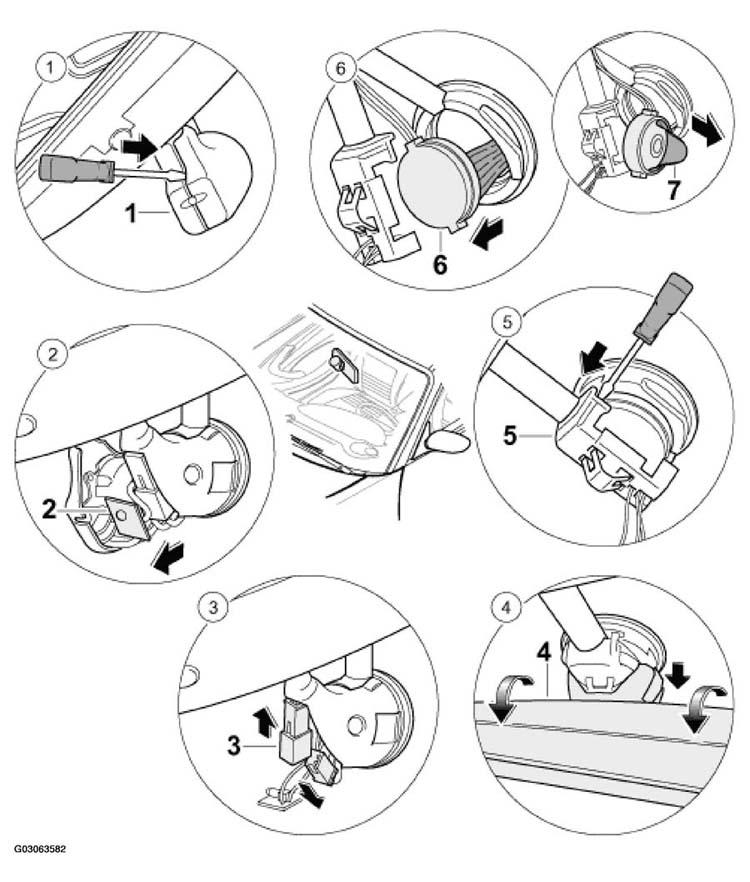

| 1 | Removing cover of rain sensor | Unclip the cover -1- . See Fig 1 . |
| 2 | Removing orientation lights | Remove orientation lights -2- . See Fig 1 . |
| 3 | Disconnecting the plug connection | Carefully pull out the plug connection -3- . See Fig 1 . |
| 4 | Removing mirror | Fold mirror -4- . See Fig 1 . |
| 5 | Unclipping rain sensor holder | Carefully unclip holder -5- . See Fig 1 . |
| 6 | Undoing rain sensor from the windscreen | Remove rain sensor -6- . See Fig 1 . |
| 7 | Pull off adhesive pad | If the rain sensor is reinstalled, then slowly pull the adhesive pad -7- . See Fig 1 . |
