Installing rain sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Observe notes: See REMOVING INFRA-RED INTERIOR SENSOR .
If the removed rain sensor is reinstalled, the surfaces must be free of adhesive residues. Do not use harsh cleaning agents. Stick the adhesive pad onto the rain sensor at a temperature of approx. 20°C.

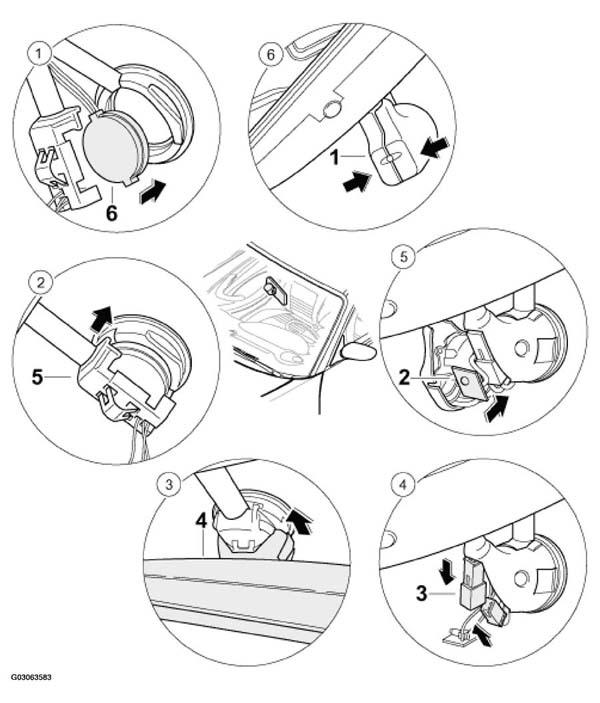

Fig 1: Installing Rain Sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

RAIN SENSOR INSTALLATION PROCEDURE

No.	Procedure	Instructions
1	Sticking on rain sensor	Push the rain sensor -6- . See Fig 1 .
2	Clip in holder	Push and press holder -5- . See Fig 1 .
3	Push on rearview mirror	Push rearview mirror -4- . See Fig 1 .
4	Pushing on plug	Joint the plug connection -3- . See Fig 1 .
5	Inserting orientation lights	Inserting orientation lights -2- . See Fig 1 .
6	Attaching cover of mirror base	Joint both covers -1- . See Fig 1 .
