Installing infra-red interior sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE OF NORTH AMERICA, INC. INFRA-RED INTERIOR SENSOR INSTALLATION PROCEDURE
| No. |
Procedure |
Instructions |
| 1 |
Connecting the plug connection |
Press the plug connection -3-

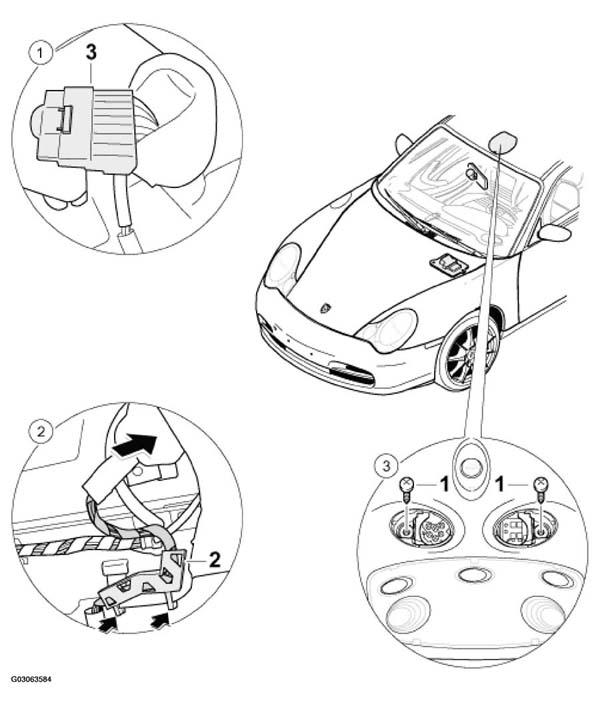

. See Fig 1
. |
| 2 |
Line routing |
Engage holder -2-
. See Fig 1
. |
| 3 |
Mounting cover of infra-red interior sensor |
Tighten fastening screws -1-
. See Fig 1
. |
