Removing and installing pump for windscreen washer system: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tank for windscreen washer system (refer to Removing and installing tank for windscreen washer system  ).
  2. Remove hose to the spray nozzles at the tank and turn the pump outlet to the rear.
  3. Lift pump upwards out of the rubber sleeve.

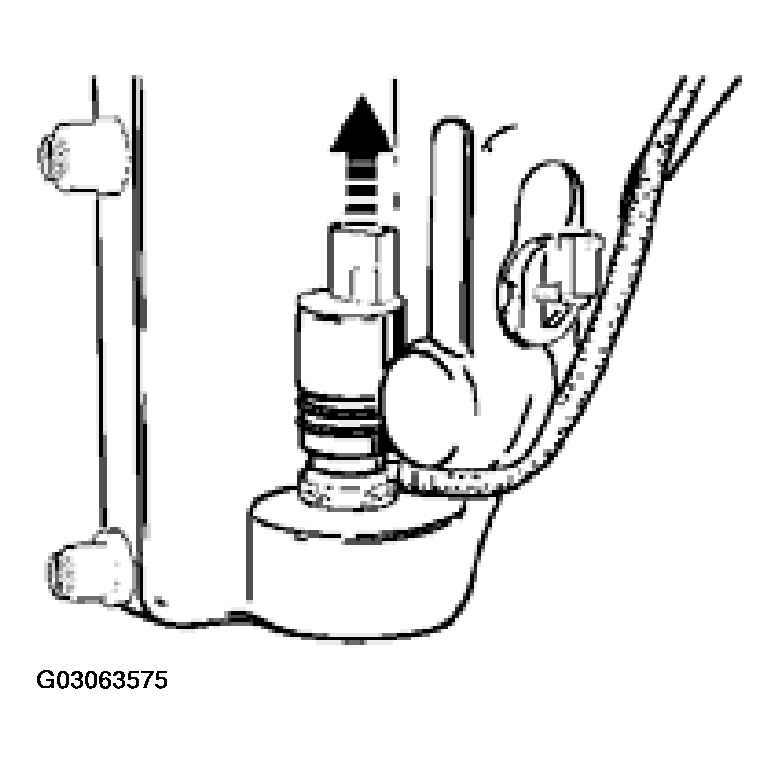

    Fig 1: Removing Windscreen Washer Pump
    G03063575Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull hose off the pump.
NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
