Removing and installing pump for headlight washing system: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tank for windscreen washer system (refer to Removing and installing tank for windscreen washer system  ).
  2. Remove hose to the spray nozzles at the tank and turn the pump outlet to the rear.
  3. Remove spacer between the pumps and lift pump upwards out of the rubber sleeve.

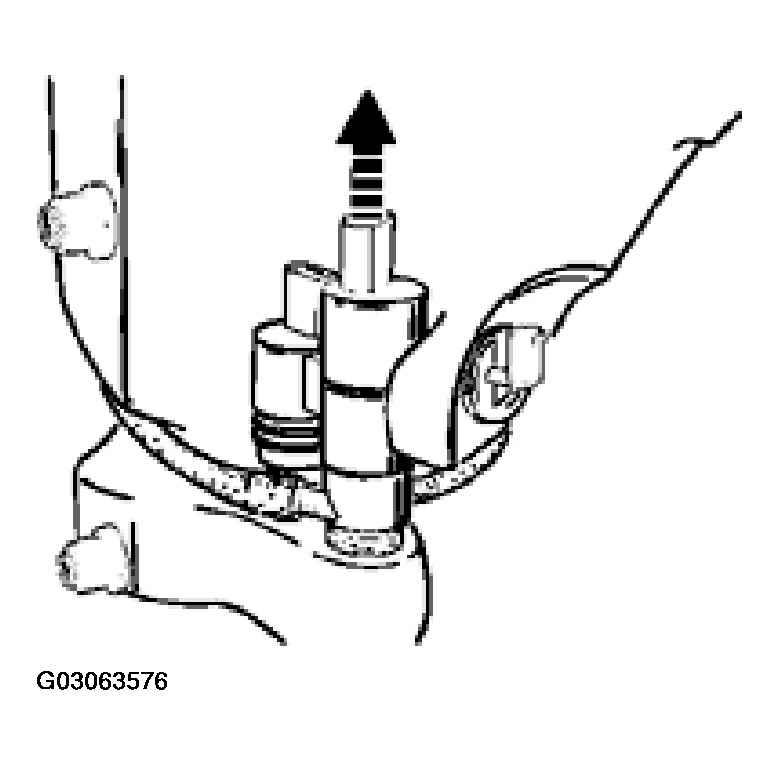

    Fig 1: Removing/Installing Headlight Washing System Pump
    G03063576Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull hose off the pump.
NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
