Removing control module for rain sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When working in the area of the wiper link, the ignition key must be removed.
CONTROL MODULE FOR RAIN SENSOR REMOVAL PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Remove the cover above the battery and fluid tank. | ||
| Turn on the windscreen wiper system and when the wiper reaches a vertical position on the windscreen turn off the ignition. | ||
| 1 | Removal of cover for rain sensor control | module Unscrew fastening screws for cover. Switch on ignition and let wiper link run in end position. |
| 2 | Removing plug of rain sensor control module | Remove cover with control module. -A-B-

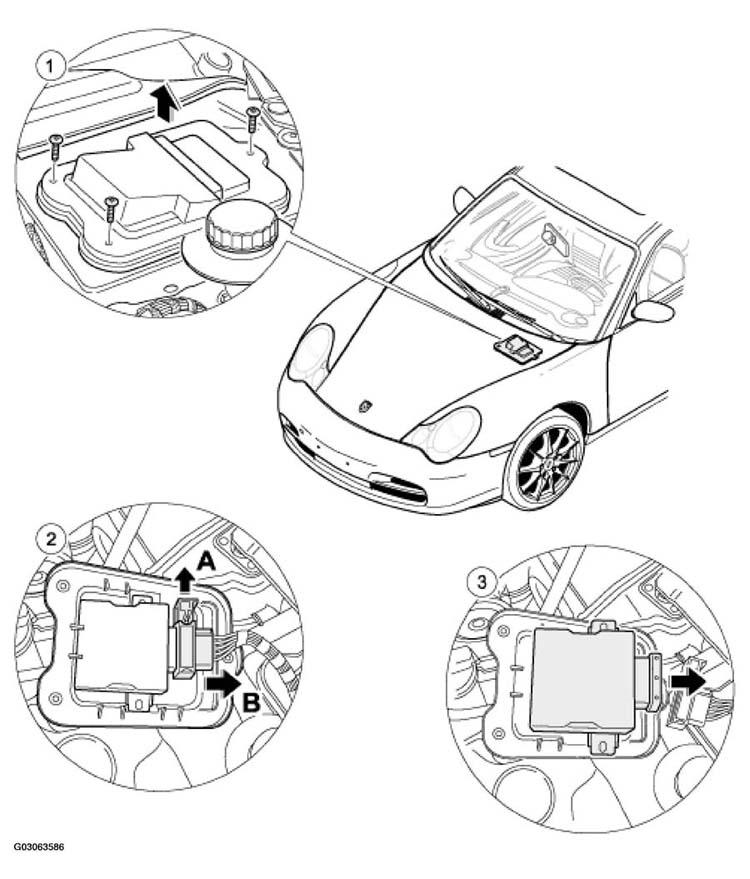

. See Fig 1
. Open slide control of plug -A-B- . See Fig 1 . |
| 3 | Disconnect control module from the cover | Pull the control module out of the cover on the side of the electrical plug connection. |
