Installing control module for rain sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

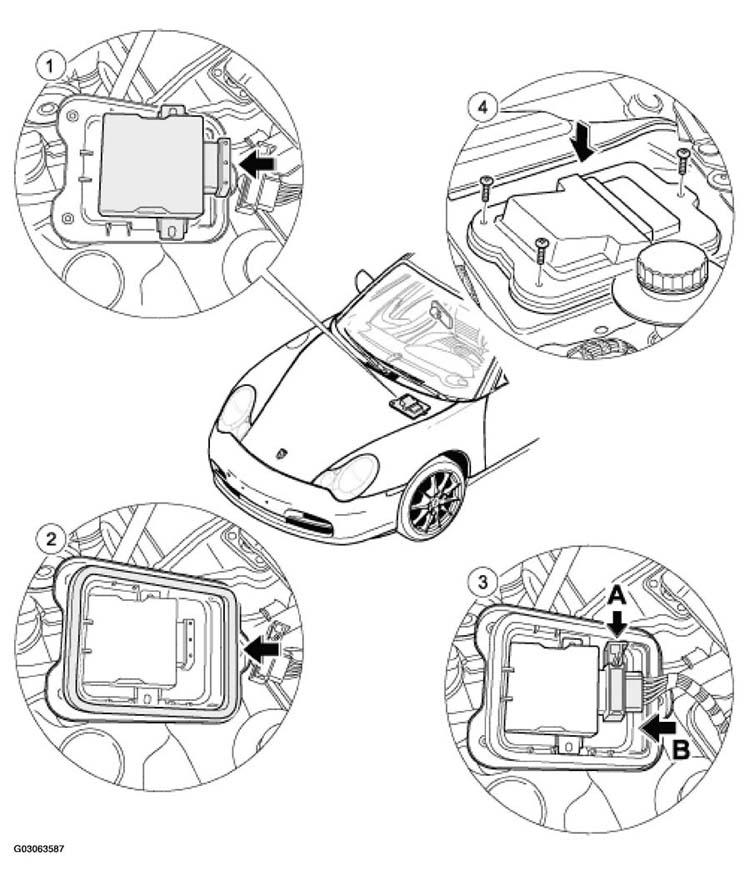

Fig 1: Installing Rain Sensor Control Module

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WARNING: When working in the area of the wiper link, the ignition key must be removed.

RAIN SENSOR CONTROL MODULE INSTALLATION PROCEDURE

No.	Procedure	Instructions
1	Connect control module with the cover	Push the control module into the cover, ensuring a secure fit.
2	Positioning seal of cover	Place the seal onto the cover and position correctly. If the seal is damaged, replace for safety reasons.
3	Connecting battery	Plug in electrical plug connection -B-A- . See Fig 1 .
4	Mount cover with control module.	Put on cover with control module. Switch ignition on and actuate windscreen wiper, windscreen wipers are vertical, switch off ignition. Tighten fastening screws.
		Ignition on, windscreen wiper runs in end position, ignition off. Tightening fastening screw.
	Install cover for battery and fluid container on the left (cowl panel).
