Installing Pressure Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Replace the O-ring on the pressure switch and wet it with refrigerant oil.

Screw pressure switch onto refrigerant line and tighten with an open-ended wrench. Counter with a second open-ended wrench. → Tightening torque: 3.5 ftlb.

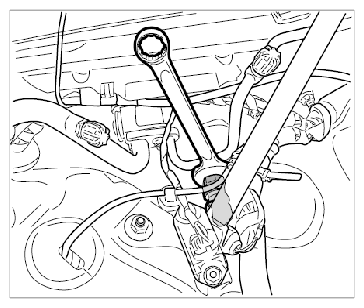

Fig 1: Installing Pressure Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push electrical plug onto pressure switch until it clicks into place.

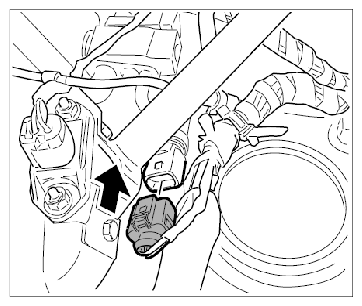

Fig 2: Installing Electrical Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
