Removing Blower Regulator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

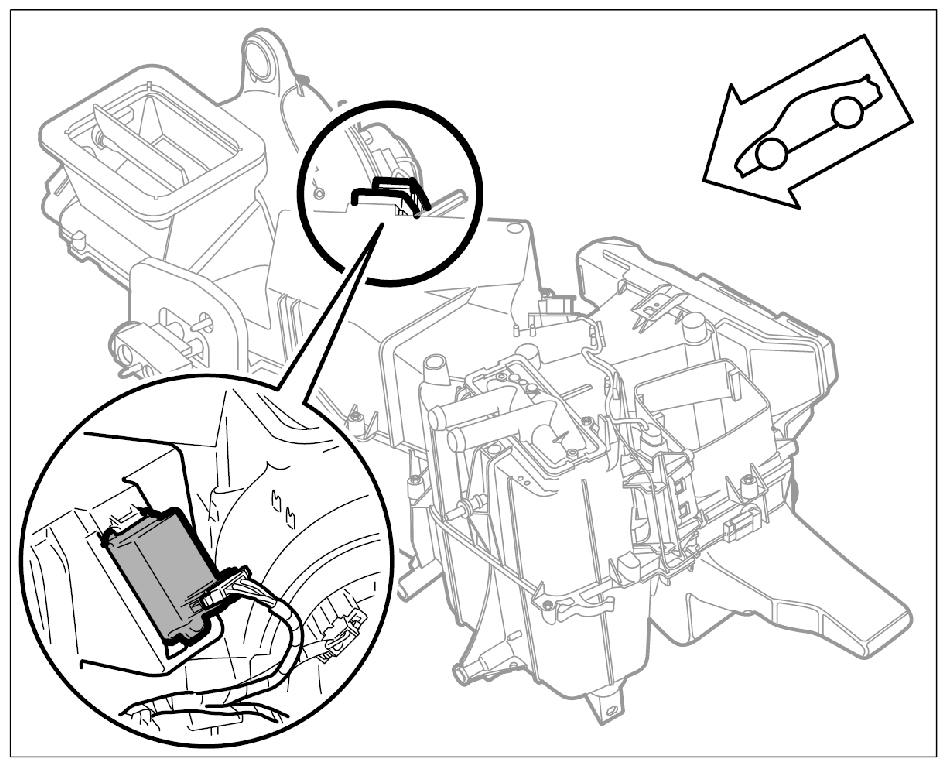

Fig 1: Identifying Blower Regulator Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
Release electrical connector and unplug it from blower regulator.

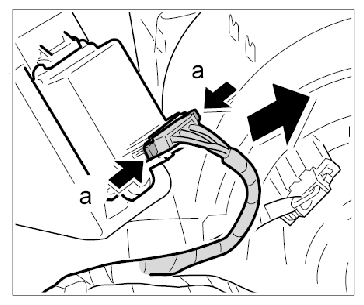

Fig 2: Removing Electrical Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo fastening screw.

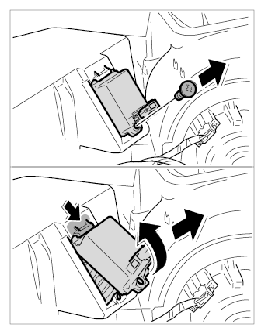

Fig 3: Removing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift blower regulator and detach at the top side.
