Installing Blower Regulator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition and remove ignition key.

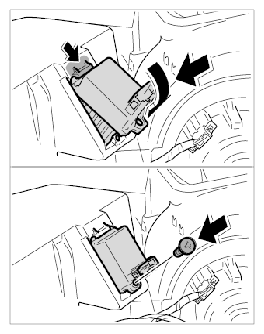

Engage blower regulator and insert into the heating/air-conditioning unit.

Fig 1: Installing Blower Regulator Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the blower regulator with the fastening screw. → Tightening torque: 1.5 Nm (1.0 ftlb.)

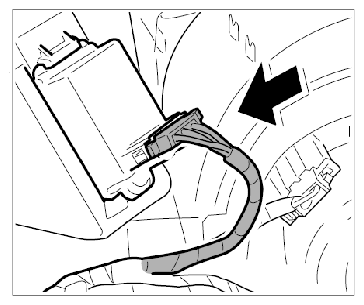

Insert electrical connector into blower regulator until it clicks into place.

Fig 2: Installing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
