Installing Outside Temperature Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition and remove ignition key.

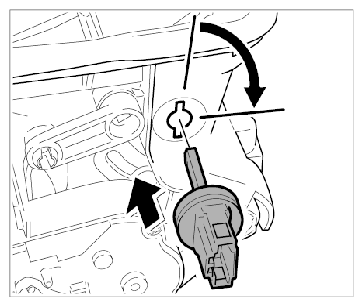

Insert temperature sensor into the heating/fresh air unit and turn through 90°.

Fig 1: Turning Temperature Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

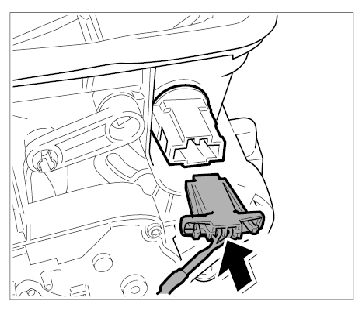

Push electrical connector into temperature sensor until it clicks into place.

Fig 2: Installing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
