Removing Temperature Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

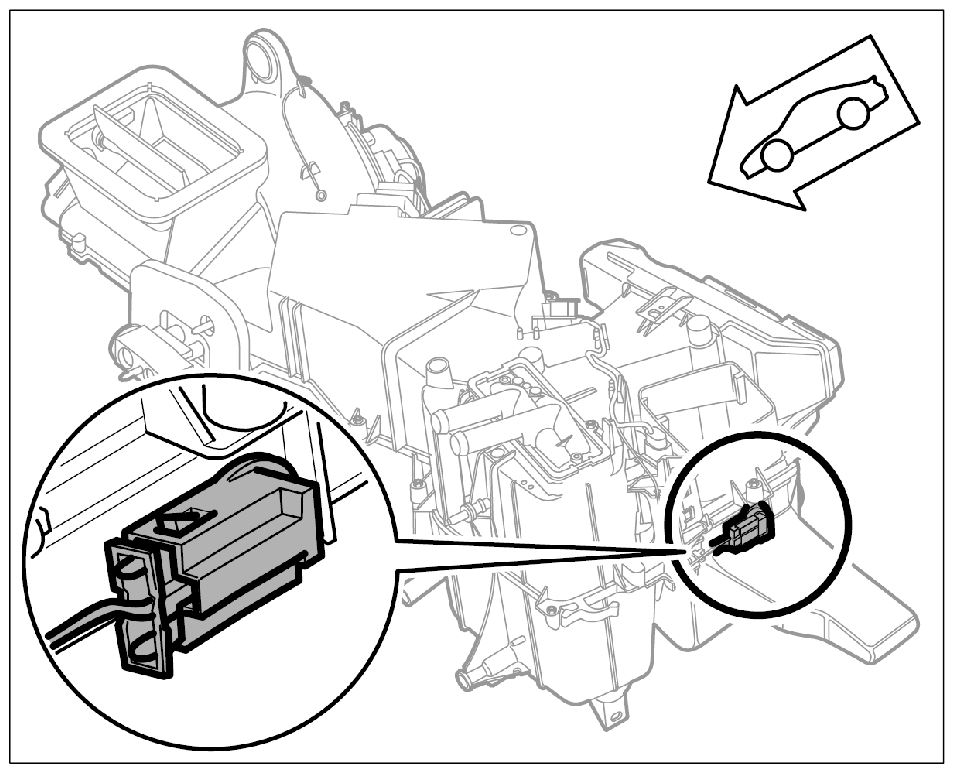

Fig 1: Identifying Temperature Sensor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
From the driver's side, reach around to the "driver's footwell" air vent to release and disconnect the electrical connector -a- .

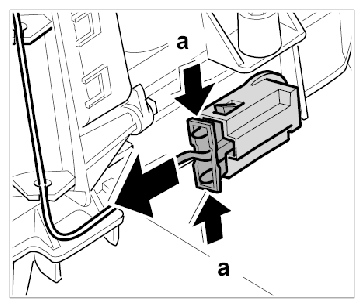

Fig 2: Removing Electrical Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn temperature sensor through 90° and pull it out of the heating/air conditioner unit.

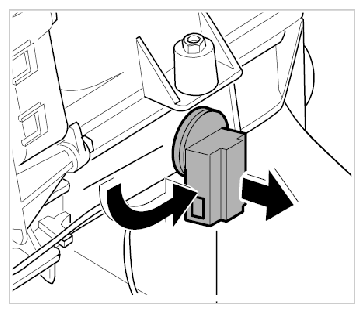

Fig 3: Turning Temperature Sensor Out Of Heating/Air Conditioner Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
