Installing Temperature Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition and remove ignition key.

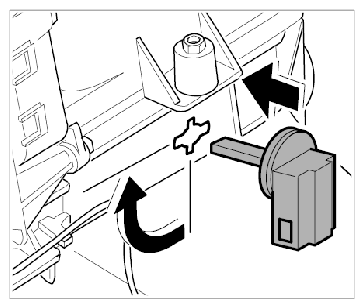

From the driver's side, reach around the "driver's footwell" air vent to insert the temperature sensor into the heater/air-conditioning unit and turn it through 90°.

Fig 1: Turning Temperature Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

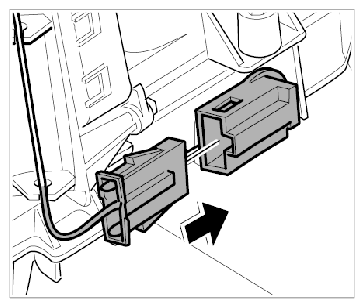

Plug in the electric connector until it clicks into place.

Fig 2: Installing Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
