Removing Desiccator (Fluid Tank)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

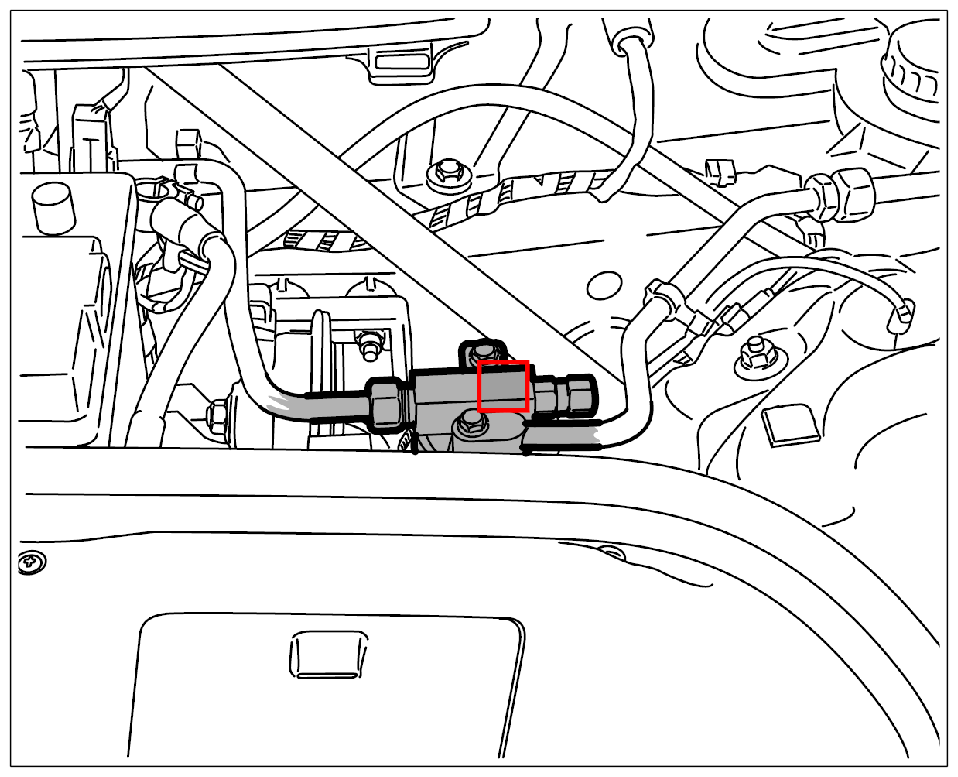

Fig 1: Identifying Desiccator (Fluid Tank) Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The desiccator (fluid tank) is located under the left plenum chamber cover.

Unscrew the fastening nuts -1- on the fluid tank
Undo fastening screws -2- .
Unscrew the fastening clamp -3- and remove the fluid tank upwards.

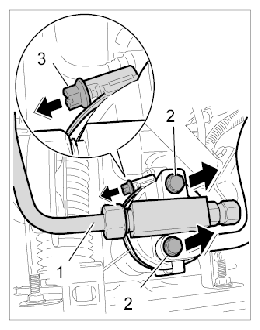

Fig 2: Removing Desiccator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
In any case, replace the desiccator.
