Removing The Condenser-Fluid Tank Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replace them if necessary.

Wet the O-rings of the refrigerant lines with refrigerant oil.

Close off all lines and connections using suitable stoppers during removal.

Do not open the stoppers for the lines and connections until shortly before installation.

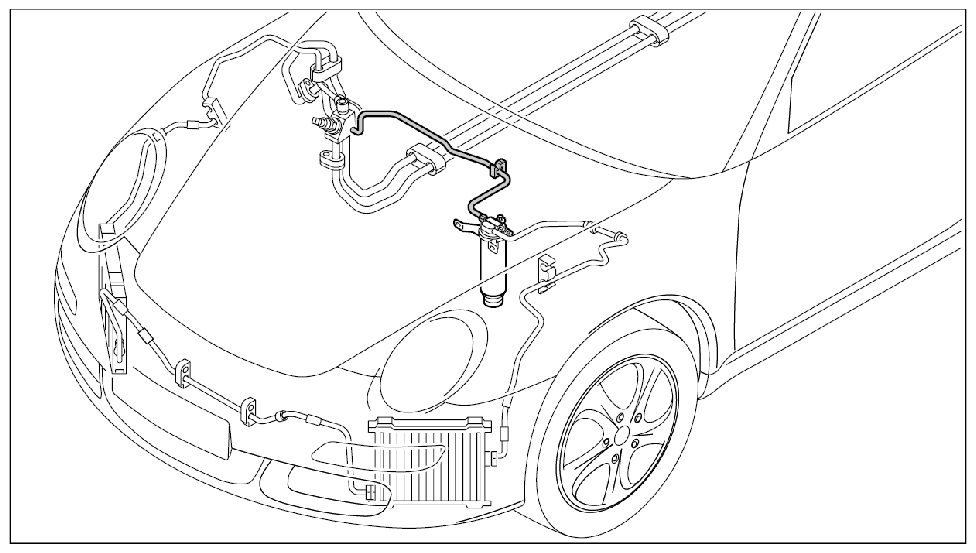

Fig 1: Identifying Condenser-Fluid Tank Line Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening nut -1- .

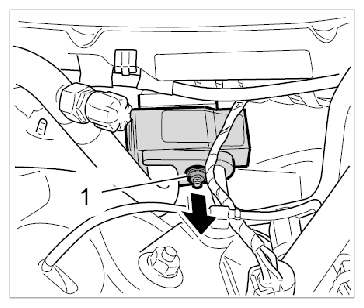

Fig 2: Removing Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the holder for the two refrigerant lines and pull the refrigerant line condenser-fluid tank out of the expansion valve.
Unscrew the fastening nut -2- for the refrigerant line condenser-fluid tank in front of the fluid tank, detach the line from the holder and pull out from under the water hoses for the heat exchanger.

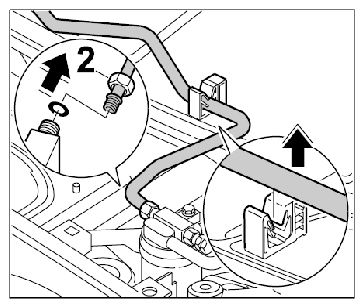

Fig 3: Removing Refrigerant Line Out Of Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
