Installing The Condenser-Fluid Tank Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replace them if necessary.

Wet the O-rings of the refrigerant lines with refrigerant oil.

Close off all lines and connections using suitable stoppers during removal.

Do not open the stoppers for the lines and connections until shortly before installation.

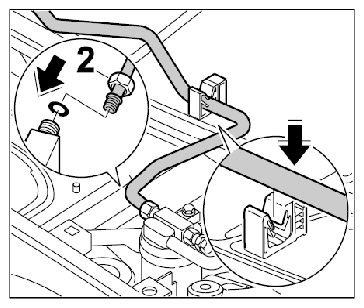

Lay the refrigerant line under the heat exchanger hoses and screw down on line to fluid tank -2- with fastening nut. → Tightening torque: 20 Nm (15 ftlb.)

Fig 1: Installing Refrigerant Line Onto Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip line into the holder.

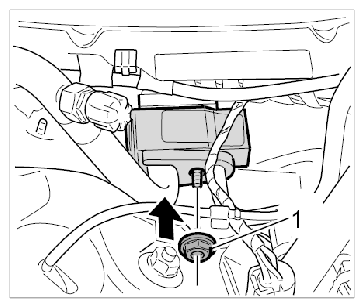

Position holder for refrigerant lines and secure with the fastening nut -1- . Tightening torque: 6 Nm (4.5 ftlb.)

Fig 2: Installing Refrigerant Line Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
