Removing Condenser-Fluid Tank Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

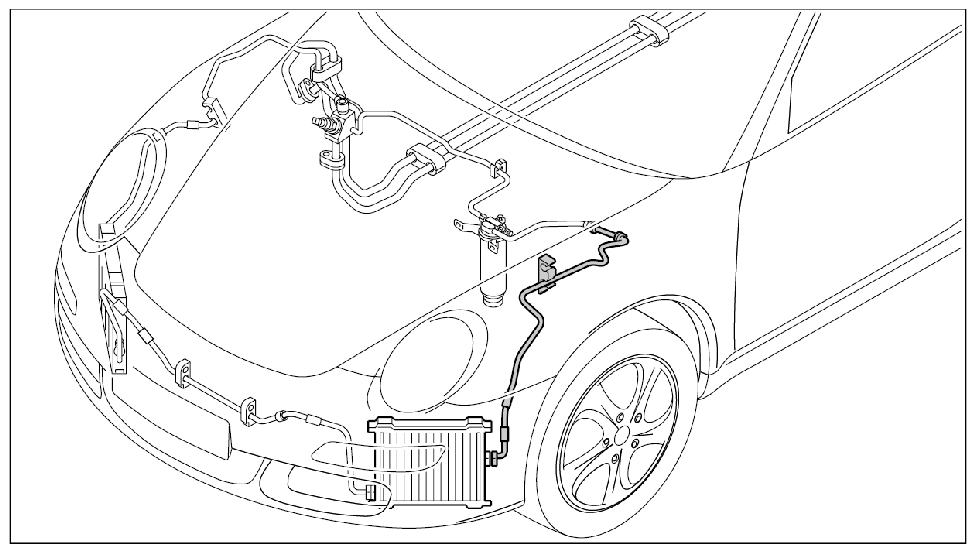

Fig 1: Identifying Condenser-Fluid Tank Line Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When loosening or tightening the refrigerant lines with line connections , always counter with the special tool assembly tool 9822 if possible.

When loosening or tightening the refrigerant lines with connections to air-conditioning components (e.g. condenser) , always counter with a size 21 open-ended wrench.

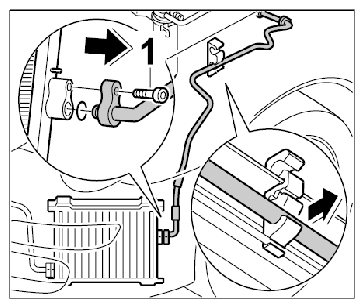

Unscrew the fastening screw -1- for the line condenser and pull the line out of the condenser.

Fig 2: Removing Line Condenser Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the line out of the line holder.

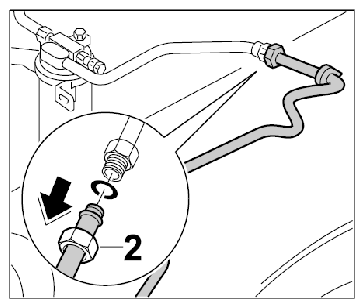

Counter the fastening nuts -2- and open carefully.

Fig 3: Removing Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replace them if necessary.

Wet the O-rings of the refrigerant lines with refrigerant oil.

Close off all lines and connections using suitable stoppers during removal.

Do not open the stoppers for the lines and connections until shortly before installation.

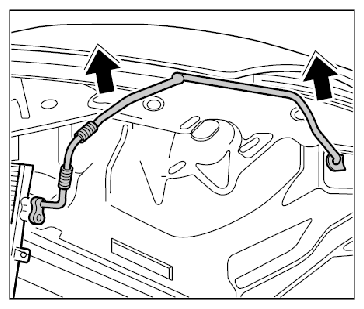

Pull the line and the rubber sleeve out of the passage to the plenum panel over the wheel housing.

Fig 4: Removing Line From Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
