Laying Compressor/Condenser Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Close off all lines and connections using suitable plugs during removal.

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.

Compressor/condenser line

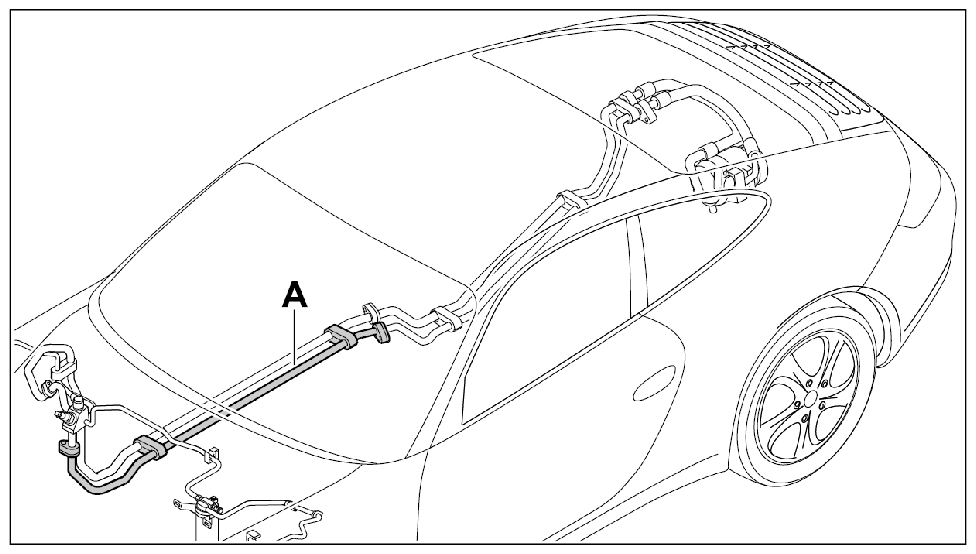

Fig 1: Identifying Compressor/Condenser Line Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the compressor/condenser line and the compressor/evaporator line together.

Fastening nut for both holders
Grommet for continuity to plenum panel

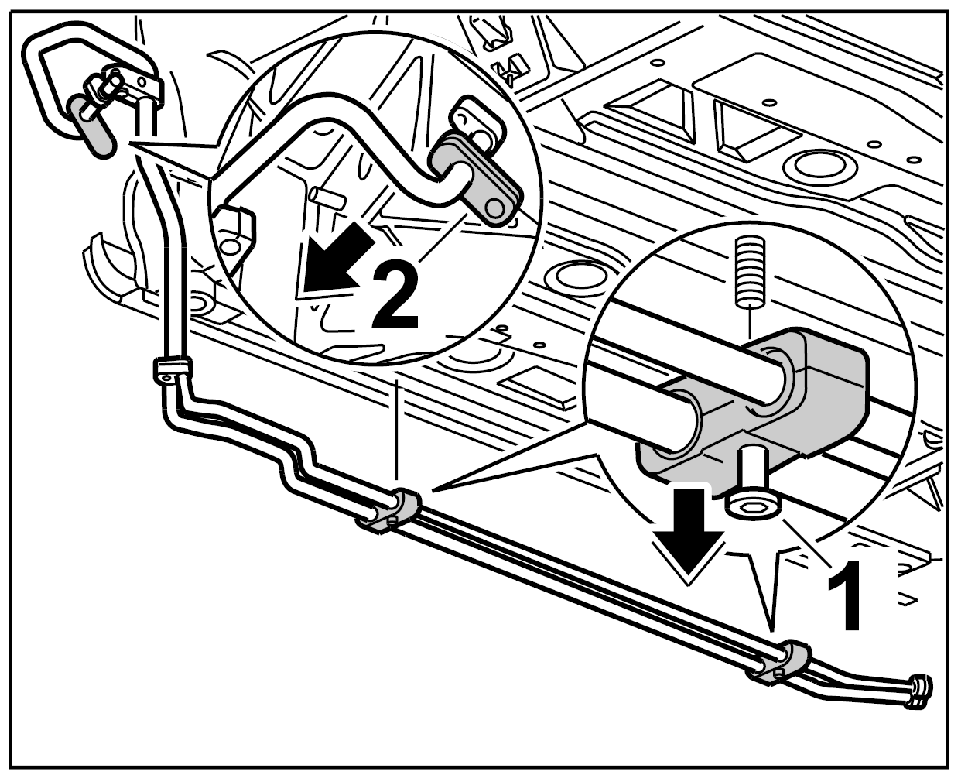

Fig 2: Removing Compressor/Condenser Line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
