Removing Compressor-Condenser Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Close off all lines and connections using suitable plugs during removal.

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.

Compressor-condenser line

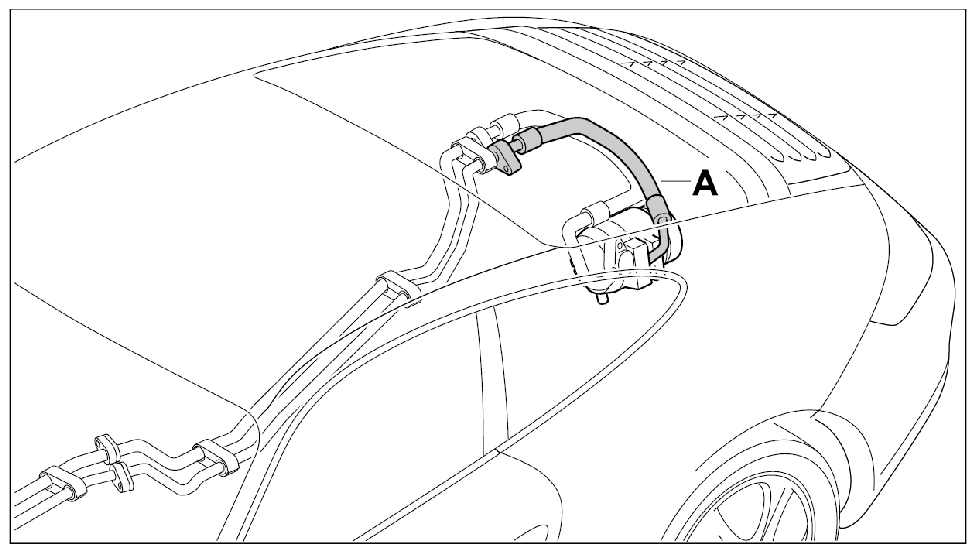

Fig 1: Identifying Compressor-Condenser Line Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the fastening screw -2- on the compressor.

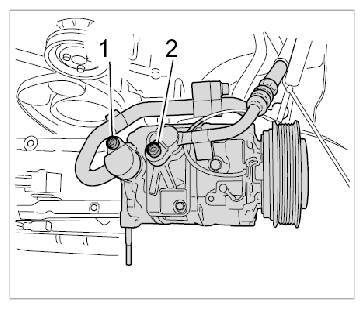

Fig 2: Identifying Compressor Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When loosening or tightening the refrigerant lines with line connections , always counter with the special tool assembly tool 9822 if possible.

When loosening or tightening the refrigerant lines with connections to air-conditioning components (e.g. condenser) , always counter with a size 21 open-ended wrench.
Unscrew the fastening screw -3- at the disconnection point ahead of the rubber mounting and remove the line from the engine compartment.

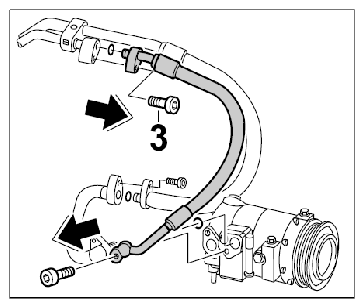

Fig 3: Removing Fastening Screw At Disconnection Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
