Installing Compressor-Condenser Line
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.
Wet the O-rings of the refrigerant lines with refrigerant oil.
Do not open the plugs for the lines and connections until shortly before installation.
Information
When loosening or tightening the refrigerant lines with line connections , always counter with the special tool assembly tool 9822 if possible.
When loosening or tightening the refrigerant lines with connections to air-conditioning components (e.g. condenser) , always counter with a size 21 open-ended wrench.

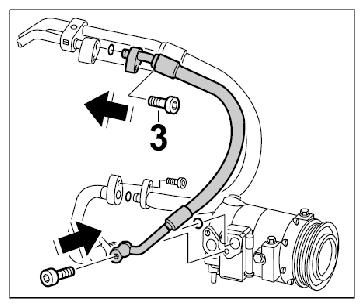

- Carefully insert the line into the engine-compartment disconnection point and fasten with the fastening screw -3- . → Tightening torque: 14 Nm (10.5 ftlb.)

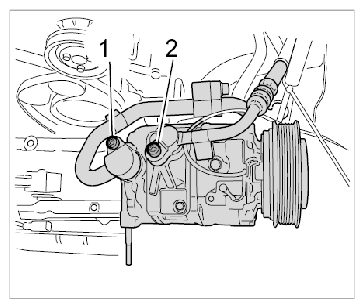

- Push the line on and fasten it with the fastening screw -2- . → Tightening torque: 21 Nm (16 ftlb.)
