Removing Compressor-Condenser Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.

Wet the O-rings of the refrigerant lines with refrigerant oil.

Do not open the plugs for the lines and connections until shortly before installation.

Close off all lines and connections using suitable plugs during removal.

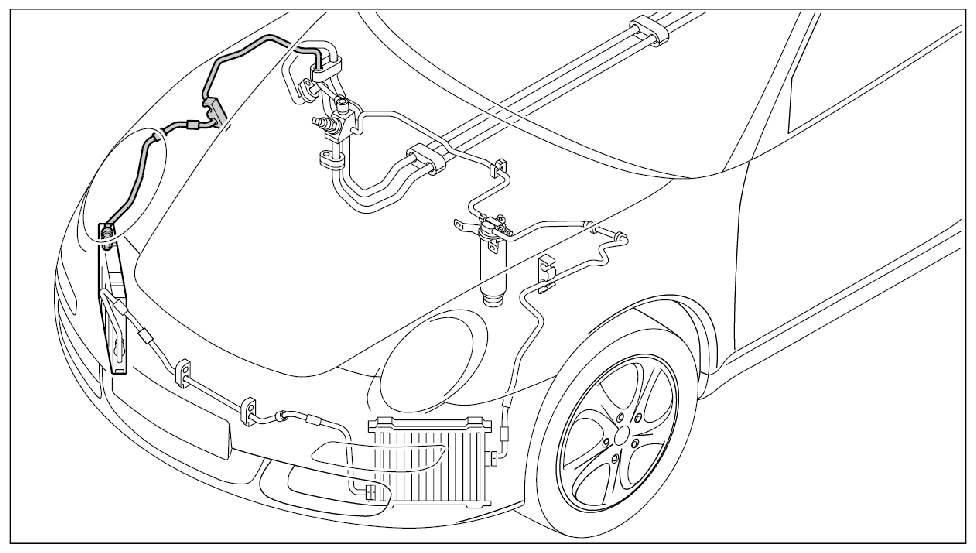

Fig 1: Identifying Compressor-Condenser Line Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When loosening or tightening the refrigerant lines with line connections , always counter with the special tool assembly tool 9822 if possible.

When loosening or tightening the refrigerant lines with connections to air-conditioning components (e.g. condenser) , always counter with a size 21 open-ended wrench.

Unscrew the fastening screw -1- for the condenser line and pull the line out of the condenser.

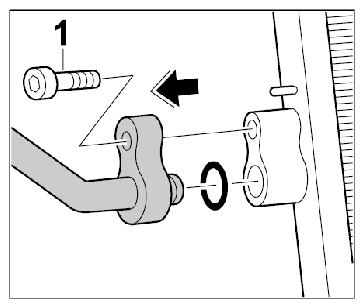

Fig 2: Removing Condenser Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip holder for line and remove the line.
Unscrew the fastening screw -2- for the line to the compressor and pull the line out of the compressor line.

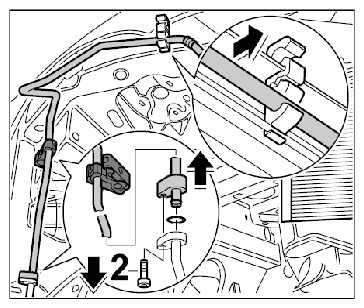

Fig 3: Removing Compressor Line Fastening Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull the line out of the line holder and take it out.
