Installing Condenser-Condenser Line

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

When loosening or tightening the refrigerant lines with line connections , always counter with the special tool assembly tool 9822 if possible.

When loosening or tightening the refrigerant lines with connections to air-conditioning components (e.g. condenser) , always counter with a size 21 open-ended wrench.

Information

Before re-installing the component, check the O-rings of the refrigerant lines for damage and replace them if necessary.

Wet the O-rings of the refrigerant lines with refrigerant oil.

Close off all lines and connections using suitable stoppers during removal.

Do not open the stoppers for the lines and connections until shortly before installation.

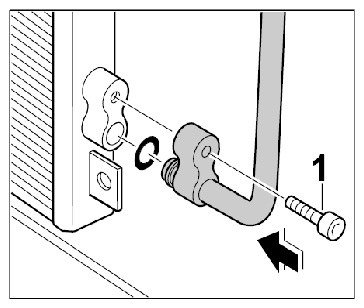

Carefully push the lines into the condensers and screw tight with the fastening screws. → Tightening torque: 14 Nm (10.5 ftlb.)

Fig 1: Installing Condenser Line Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

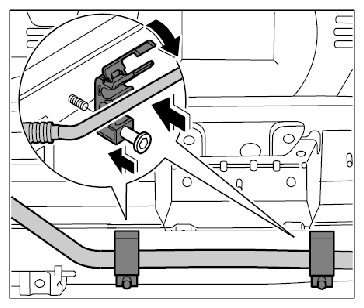

Attach line to both holders, close holders and secure with fastening screws.

Fig 2: Installing Condenser Line To Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

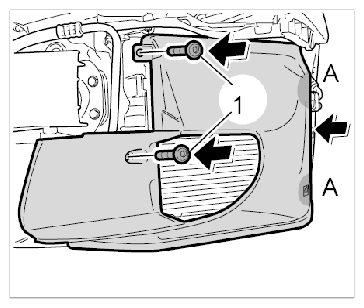

Engage air guide on condenser -A- and screw down using the two fastening screws -1- . → Tightening torque: 4 Nm (3 ftlb.)

Fig 3: Installing Condenser Air Guide Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
