Removing Air-Conditioning Compressor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew fastening screw on crankcase vent line -1- at the oil filter and pull out crankcase vent line -3- .
Unclip crankcase vent line -2- and fold it to the left.

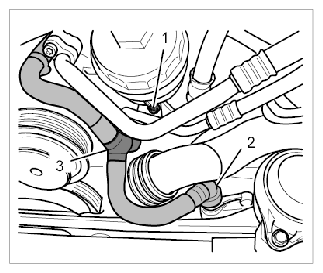

Fig 1: Identifying Crankcase Vent Line Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Crankcase Vent Line Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove and unplug electric connector -4- from the top bracket on the compressor.

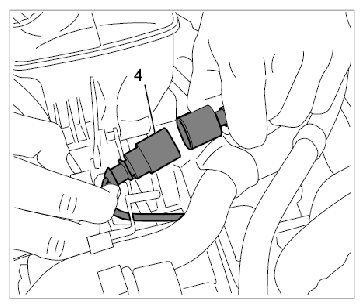

Fig 3: Removing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the three fastening screws on the compressor -5- and remove the bracket -6- .

Fig 4: Removing Compressor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place compressor along with the lines on the rear carrier plate and unscrew the two fastening screws -7, 8- .

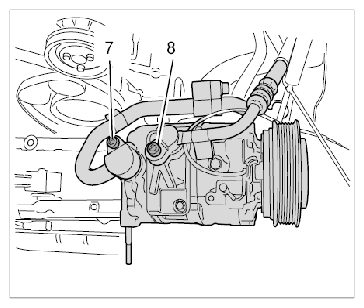

Fig 5: Removing Refrigerant Lines Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Immediately close off connections and lines using suitable stoppers.
