Installing Air-Conditioning Compressor

→ Do not start the engine.

→ Do not tow the vehicle.

Information

• New compressors are pressurized and are filled with the required amount of oil for the refrigerant circuit!
• The remaining oil quantity in the individual components must therefore be taken into account!
• Refrigerant oil from the compressor or refrigerant oil removed by suction from a previously run air-conditioning system may no longer be used (special-category waste)!

1. If a new compressor is installed, correct the refrigerant oil quantity in the compressor first.
2. Replace O-rings for the refrigerant lines and wet the new rings with refrigerant oil.
3. Do not remove the stoppers for the lines and compressor connection until shortly before installation.
4. Connect the lines and screw in the two fastening screws -7, 8-  . → Tightening torque: 23 Nm (17 ftlb.) → Tightening torque: 23 Nm (17 ftlb.)

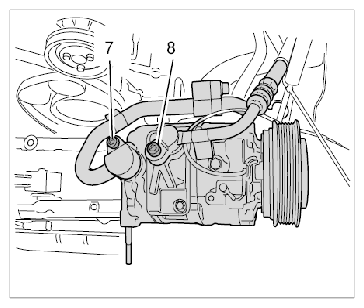

   Fig 1: Installing Refrigerant Lines Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit compressor and bracket -6-  and screw in the three fastening screws -5-  . → Tightening torque: 23 Nm (17 ftlb.)
   Fig 2: Installing Compressor Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Plug in electric connector until the connector engages securely and slides onto the top bracket on the compressor.

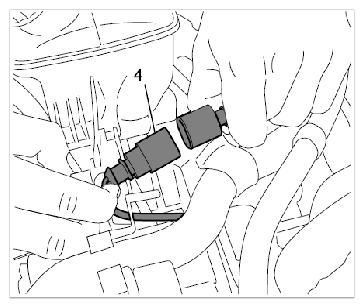

   Fig 3: Installing Electric Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Replace seals on the crankcase vent line.
8. Fold crankcase vent line to the right and clip it in -2-  .
9. Fit crankcase vent line on the oil filter and screw in fastening screw -1-  . → Tightening torque: 10 Nm (7.5 ftlb.)

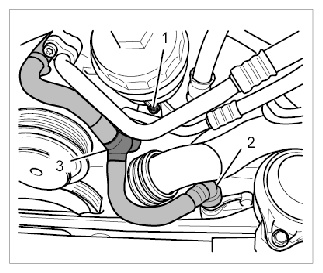

   Fig 4: Identifying Crankcase Vent Line Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

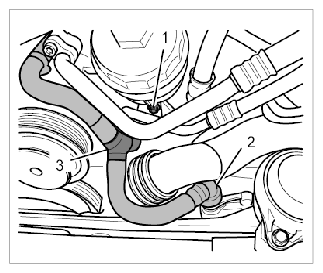

   Fig 5: Identifying Crankcase Vent Line Connection
