Technical Values
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

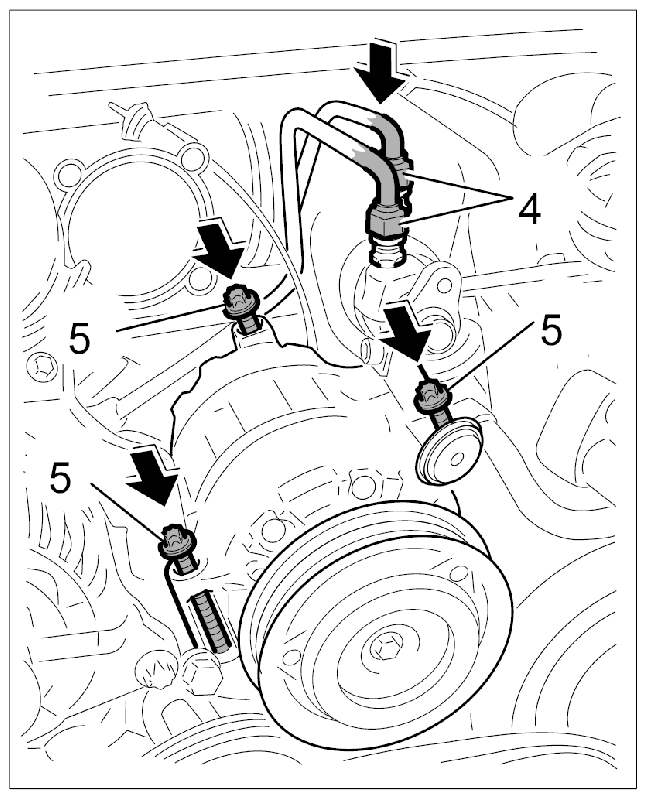

| Fastening screws securing air-conditioning compressor to engine housing | -5- | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Securing air-conditioning compressor |
|||||

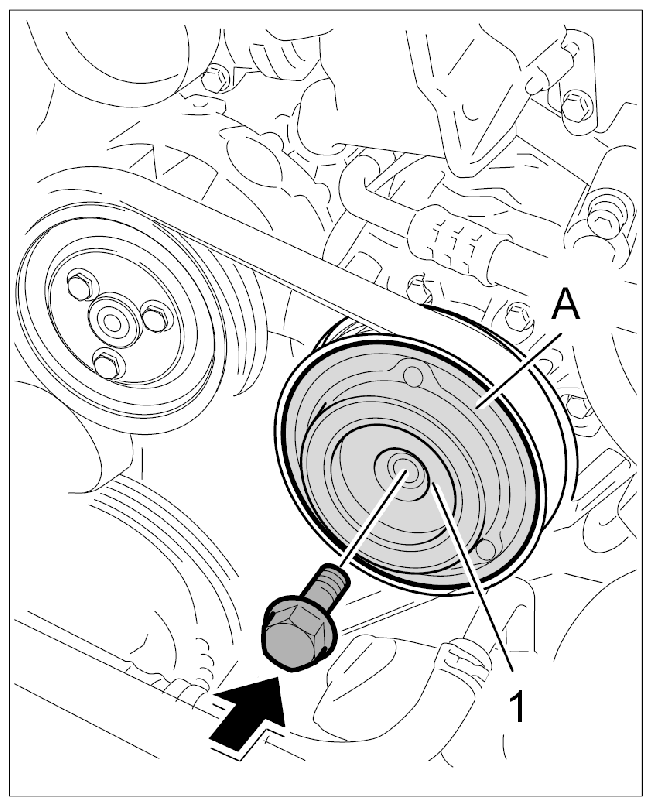

| Pressure plate to air-conditioning compressor | -1- | Tightening torque | 14 Nm (10.5 ftlb.) | ||
|
Securing pressure plate |
|||||
