Removing Magnetic Clutch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

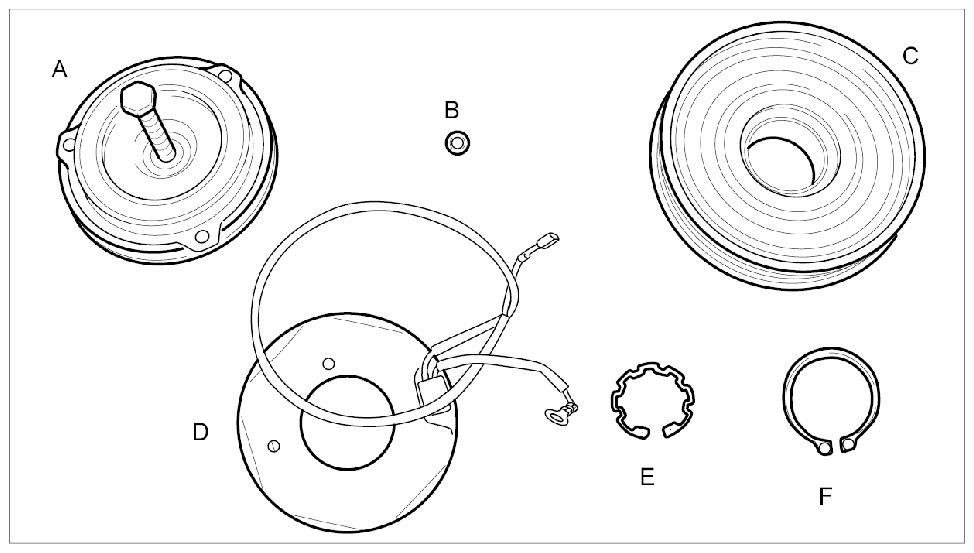

Fig 1: Identifying Magnetic Clutch Components
G09830272Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pressure plate
  2. Spacer
  3. Pulley
  4. Solenoid coil
  5. Seeger circlip ring for pulley
  6. Seeger circlip ring for solenoid coil
  1. Use a commercially available strap wrench to securely hold the pressure plate -A-  on the air-conditioning compressor, and loosen the fastening screw -1-  .

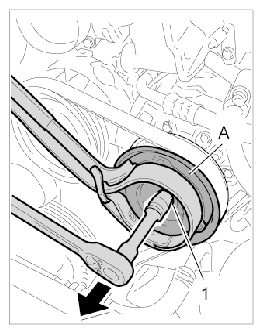

    Fig 2: Removing Pressure Plate Fastening Screw
    G09830273Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw an M8 screw -2-  into the thread of the pressure plate until the pressure plate -A-  can be removed by hand.
  3. Take off spacers -B-  behind the pressure plate.

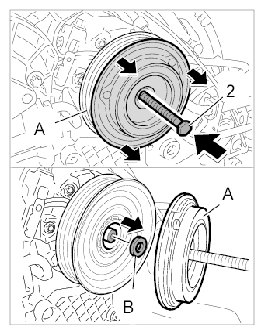

    4. Fig 3: Removing Pressure Plate
    G09830274Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Use a Seeger circlip ring pliers to remove the Seeger circlip ring -E-  on the pulley -C-  .

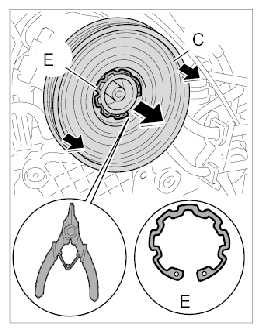

    Fig 4: Removing Seeger Circlip Ring For Pulley
    G09830275Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove pulley -C-  from the compressor.
  6. Unscrew the two cap nuts -4-  for the fuel cooler. → REMOVING FUEL COOLER
  7. Unscrew the three fastening screws -5-  securing the air-conditioning compressor.

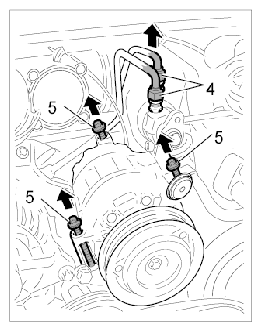

    Fig 5: Removing Fuel Cooler Fastening Nuts And Air-Conditioning Compressor Fastening Screws
    G09830276Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. The connection point for the electric line for the air-conditioning compressor is located behind the oil-filter console. Lever the connector out of the plastic holder and pull it apart.

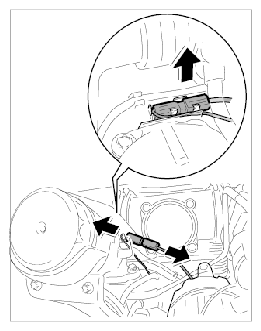

    Fig 6: Removing Air-Conditioning Compressor Electric Plug Connection
    G09830277Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Screw off electric line for the solenoid coil on the compressor:
    1. 9.1. Lift the air-conditioning compressor up to allow easy access to the fastening screw -1-  for the line connected to the solenoid coil.
    2. 9.2. Unscrew fastening screw -1-  for the line connected to the solenoid coil.

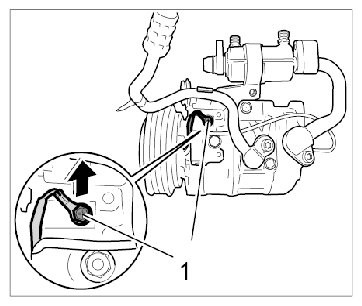

      3. Fig 7: Removing Air-Conditioning Compressor Electric Line
      G09830278Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Remove Seeger circlip ring -F-  for the solenoid coil using the Seeger circlip ring pliers. Remove the solenoid coil from the compressor housing.

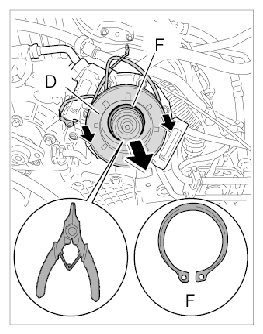

    Fig 8: Removing Solenoid Coil Seeger Circlip Ring
    G09830279Courtesy of PORSCHE CARS NORTH AMERICA, INC.
