Installing Magnetic Clutch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If a new magnetic clutch is installed, the air gap between pressure plate and pulley must be checked with a depth gauge. → Checking The Magnetic Clutch

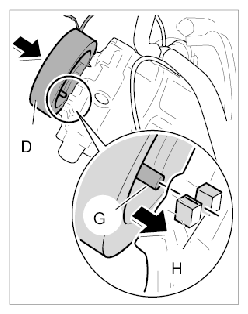

Place the solenoid coil -D- on the compressor housing. The lock pin -G- must engage in the locking hole -H- .

Fig 1: Installing Solenoid Coil On Compressor Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

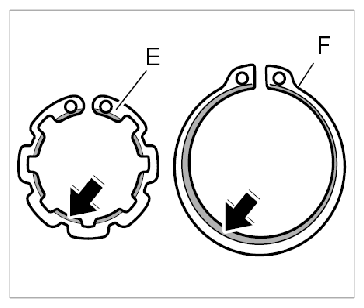

When installing the Seeger circlip ring, the slanted surface of the Seeger circlip ring must point forward.

Fig 2: Locating Seeger Circlip Ring Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

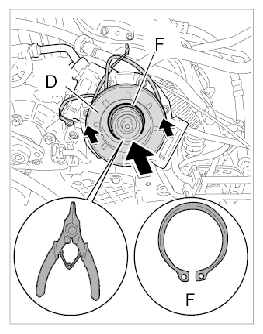

Position the Seeger circlip ring -F- for the solenoid coil -D- and fit it using the Seeger circlip ring pliers.

Fig 3: Installing Solenoid Coil Seeger Circlip Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

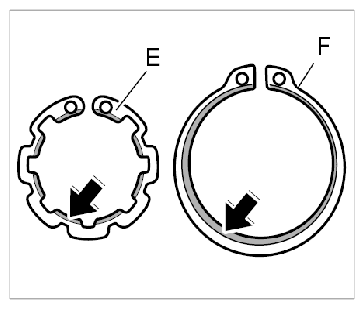

When installing the Seeger circlip ring, the slanted surface of the Seeger circlip ring must point forward.

Fig 4: Locating Seeger Circlip Ring Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

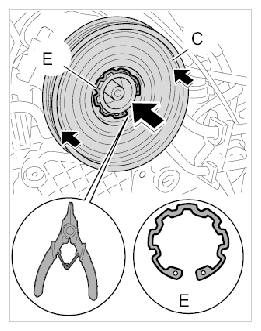

Position pulley -C- and install it with the Seeger circlip ring -E- .

Fig 5: Positioning Pulley
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure electric line on the compressor with the fastening screw.

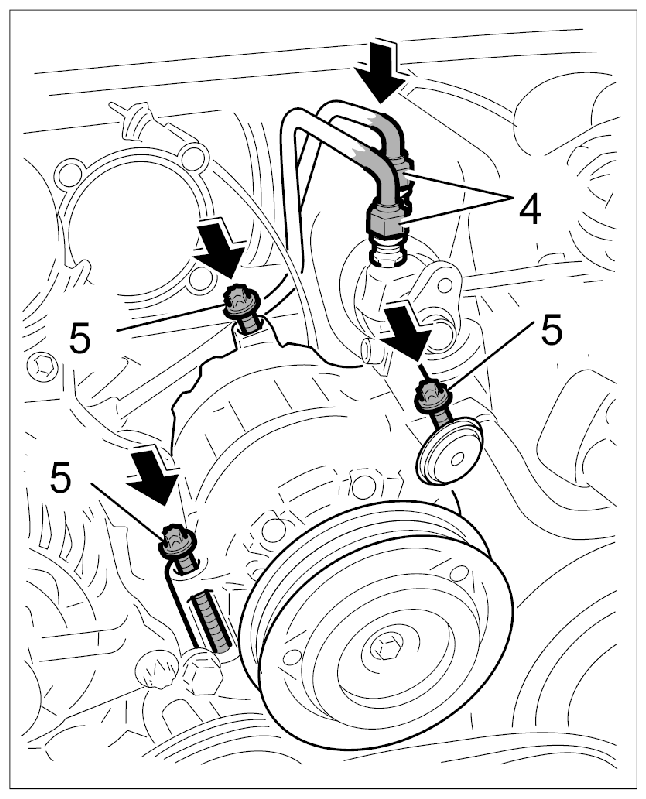

Position the air-conditioning compressor with fuel cooler on the engine and use the three fastening screws -5- to secure it to the engine. → Tightening torque: 23 Nm (17 ftlb.)
Fit the two cap nuts -4- for the fuel cooler and tighten them.

Fig 6: Installing Fuel Cooler Fastening Nuts And Air-Conditioning Compressor Fastening Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

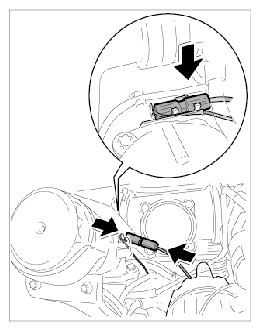

Connect the electric line for the air-conditioning compressor and clip it onto the bracket behind the oil-filter console.

Fig 7: Routing Air Conditioning Compressor Electric Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

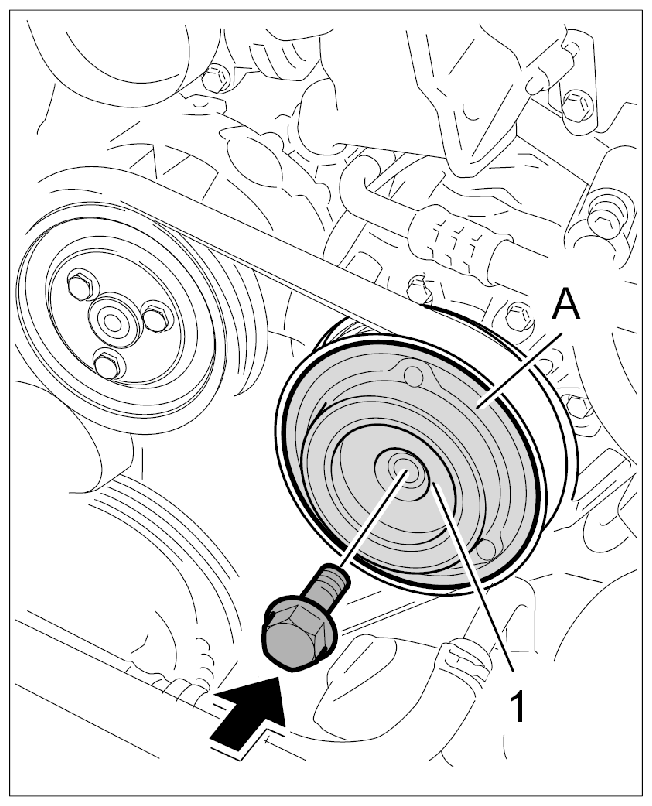

Position the pressure plate -A- and secure in place with the fastening screw -1- . → Tightening torque: 14 Nm (10.5 ftlb.)

Fig 8: Installing Pressure Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
